Category: Process Troubleshooting

Practical troubleshooting guides for polyurethane foam production issues, defects, processing problems, quality variation, and performance failures.

4 NCO Content Mistakes That Corrupt PU Foam Index

Introduction

NCO content mistakes are dangerous because they do not always look like NCO content mistakes.

They usually appear as ordinary foam quality problems.

One batch is firmer than expected. Another batch feels softer. Compression set moves close to the limit. The same formula behaves differently after a new isocyanate delivery. The production team checks catalyst, silicone, temperature, machine calibration, and raw material handling.

But the cause may be one number in the formula spreadsheet: %NCO.

The %NCO value controls isocyanate equivalent weight. Equivalent weight controls how many NCO equivalents are delivered by the TDI or MDI parts in the formula. NCO equivalents control the actual isocyanate index.

If the formula uses the wrong %NCO value, the foam may not be running at the index shown on the sheet.

This article explains four NCO content mistakes that commonly corrupt PU foam index calculations and how to control them before they become production quality problems.

Why NCO Content Mistakes Are So Costly

NCO content is not just a supplier data point. It is a formulation control value.

The isocyanate equivalent weight is calculated as:

Isocyanate EW = 4,200 ÷ %NCO

If the %NCO value is wrong, the equivalent weight is wrong. If the equivalent weight is wrong, the NCO equivalents are wrong. If the NCO equivalents are wrong, the actual index is wrong.

That means a simple %NCO mistake can affect:

Foam hardness
ILD
Compression set
Resilience
Cure behaviour
Crosslink density
Batch-to-batch consistency
Customer feel and performance

The foam may still rise normally. The machine may still run normally. The block may still look acceptable. But the foam chemistry may not match the formula sheet.

This is why %NCO handling should be part of every formulation review and production QC system.

Mistake 1: Using the TDS Midpoint %NCO as a Formulation Constant

The most common mistake is using the TDS midpoint as a fixed %NCO value.

The Technical Data Sheet gives a specification range or typical value. It does not give the exact %NCO value of the drum currently in production.

For example, a TDI grade may have a range of 46.8–49.8% NCO. An engineer may use the midpoint of 48.3% NCO.

That value may be reasonable for design work, but it should not be treated as a permanent production input.

If the actual drum CoA shows 49.8%, the same TDI weight delivers more NCO equivalents than expected. If the actual drum CoA shows 46.8%, the same TDI weight delivers fewer NCO equivalents than expected. The formula sheet may still say Index 105, but the actual running index may be different.

%NCO Value	EW (g/eq)	Same TDI Quantity	Actual Index Running
49.8 (high-end CoA)	84.34	50.22 parts	108.3
48.3 (midpoint / design)	86.96	50.22 parts	105.0
46.8 (low-end CoA)	89.74	50.22 parts	101.8

That is about a 6.5-point total index swing from low-end to high-end %NCO, without changing the formula parts or machine settings.

The rule is simple: the TDS value is not the production calculation value. Use the CoA %NCO.

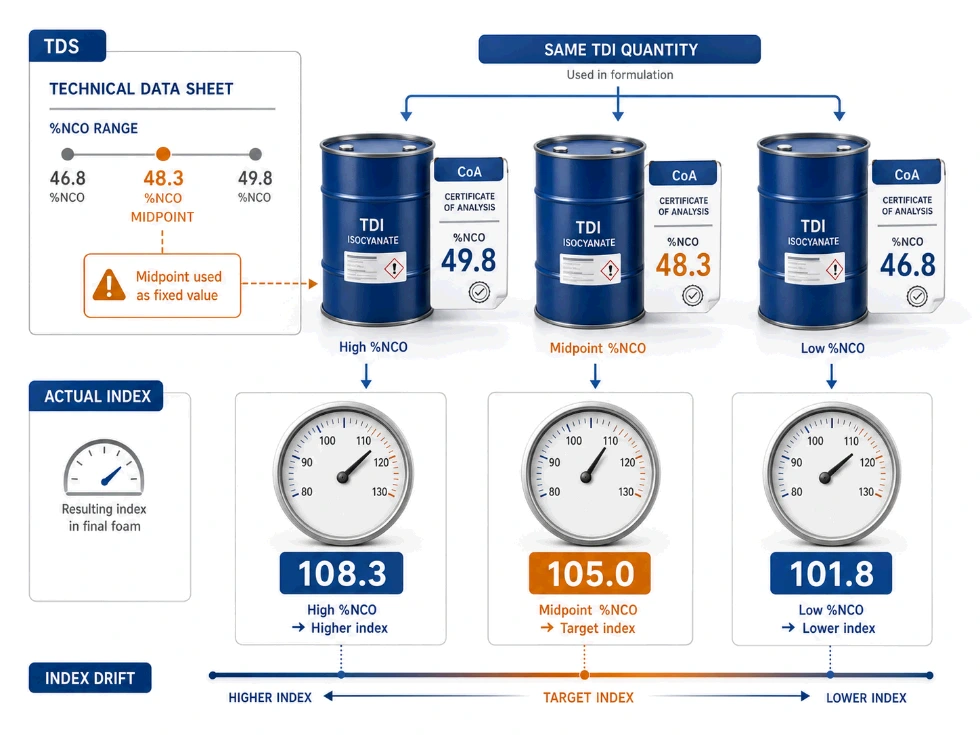

TDS midpoint percent NCO mistake causing PU foam index drift

Mistake 2: Not Updating %NCO After Switching Isocyanate Supplier

A supplier change is a formulation event. It should never be treated as only a purchasing event.

A plant may buy the same isocyanate grade from a different manufacturer and assume the formula can continue unchanged. Same grade does not always mean same actual %NCO.

For example:

Old supplier CoA: 48.3% NCO
New supplier CoA: 47.4% NCO

If the formula still uses 48.3%, the equivalent weight calculation is no longer correct for the new material. The foam may immediately begin running at a different actual index.

The change may be small enough to avoid a dramatic failure, but large enough to create persistent quality drift.

Possible symptoms include:

Foam slightly softer than target
Lower ILD
Compression set moving closer to limit
Slower troubleshooting because “the grade is the same”
Long-term confusion after procurement changes

The correct rule is: every supplier switch requires a %NCO review and index recalculation. The formula spreadsheet should be updated when the first CoA from the new supplier arrives.

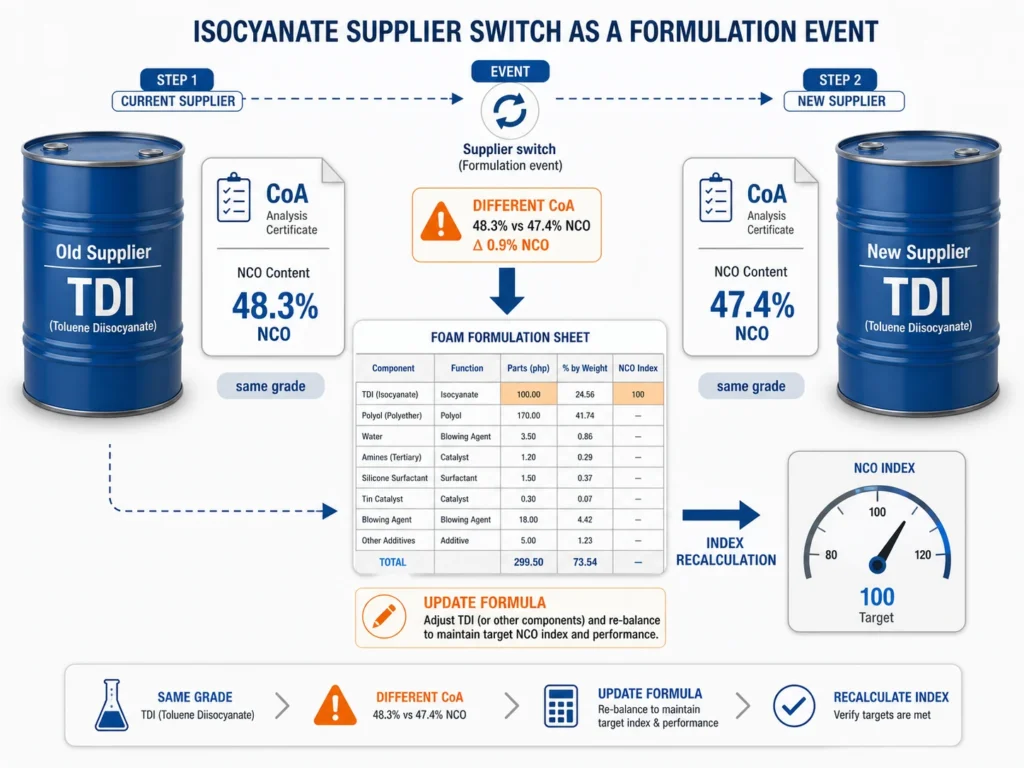

Isocyanate supplier switch requiring percent NCO update in PU foam formula

Mistake 3: Ignoring %NCO Drift from Moisture Exposure

NCO groups react with water — including atmospheric moisture.

If isocyanate drums are stored poorly, opened repeatedly, damaged, or not resealed properly, active NCO content can decrease before the material reaches the mixing head.

The CoA may have been correct when the supplier tested the batch. But the material in the drum may no longer match that value if it has been exposed to moisture or stored under poor conditions.

Possible risk conditions include:

Humid storage environment
Damaged drum bung
Poor resealing after opening
Long storage time after opening
Repeated opening and closing
Transfer procedures that expose isocyanate to air
Aged or suspect drums used in critical products

When active %NCO decreases, the isocyanate equivalent weight increases. If the formula still assumes the original CoA value, the actual index can drop.

This can appear as softer foam, lower ILD, weaker recovery, compression set risk, inconsistent results from older drums, or quality differences between fresh and aged material.

For critical production, aged or suspect drums should be verified before use. In-house %NCO titration is not excessive when the product specification is tight — it is raw material risk control.

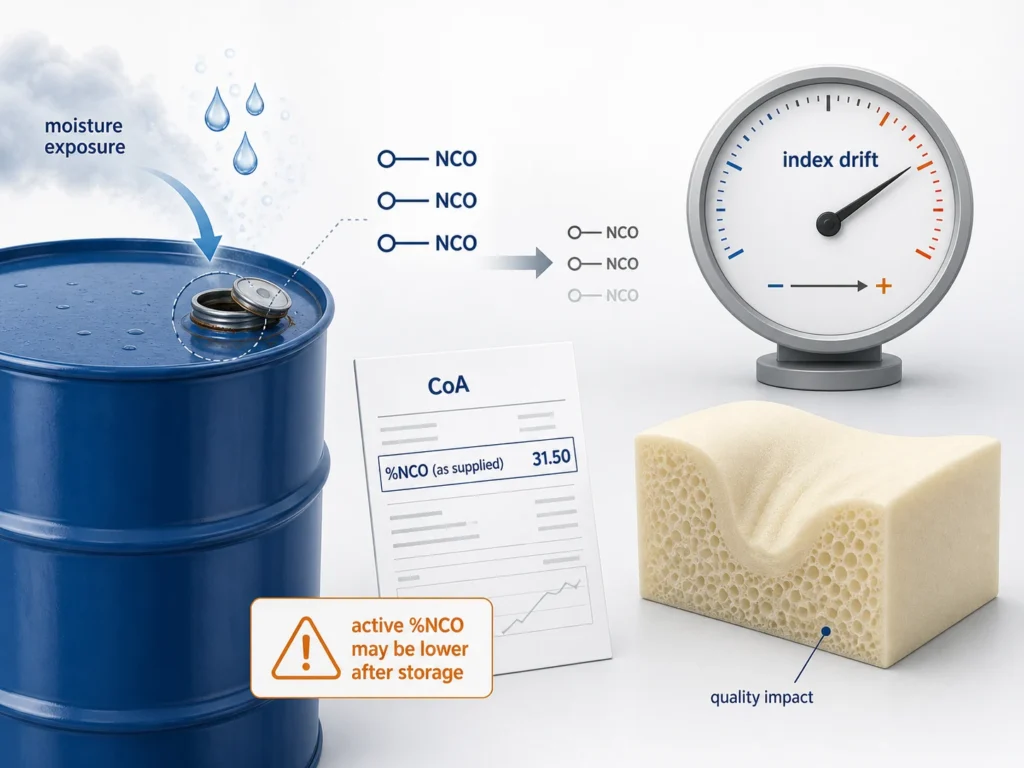

Moisture exposure reducing NCO content in isocyanate drums for PU foam production

Mistake 4: Assuming NCO Variation Is Only a TDI Problem

TDI usually gets more attention because its %NCO range can create a visible index swing. But MDI users should not ignore %NCO variation.

MDI may have a narrower specification range than TDI, but the effect is still real. The formula is the same:

Isocyanate EW = 4,200 ÷ %NCO

A smaller EW shift can still move the index by a few points, especially in tight-specification products.

This matters in:

Automotive foam
Molded foam
High-specification furniture foam
Technical foam grades
Systems using modified or polymeric MDI
Formulas with tight compression set or hardness targets

The mistake is assuming that because the range is narrower, the effect can be ignored. It should still be checked.

The correct rule: use actual CoA %NCO for both TDI and MDI systems.

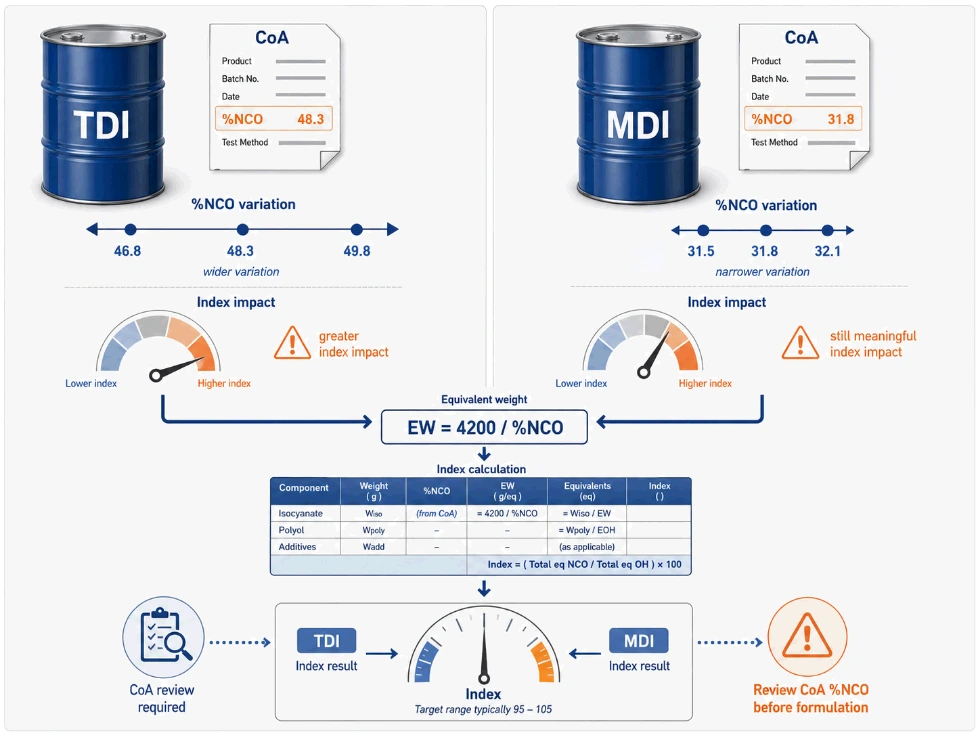

TDI and MDI NCO content variation requiring CoA review in polyurethane foam formulation

In-House %NCO Verification for Critical Production

The CoA is important. But critical production may need one more layer of verification.

For high-specification products, in-house %NCO testing can protect the plant from hidden raw material drift.

This is especially important when:

The drum has been stored for a long time
The seal looks damaged
The material was exposed to humidity
The product has tight index tolerance
The foam is automotive, medical, or high-specification furniture grade
A new supplier is being qualified
Foam properties changed after a new isocyanate delivery

A common method for determining isocyanate content is ASTM E222.

For critical products, if the in-house result differs from the CoA by a meaningful amount, the drum should be held and investigated before production.

The goal is not to distrust suppliers. The goal is to confirm that the material being used today still matches the formulation assumption.

n-house percent NCO verification for isocyanate QC in polyurethane foam production

Production QC Checklist for NCO Content

A strong %NCO control system is simple. Use this checklist for every isocyanate delivery:

QC Checkpoint	Question to Ask
CoA available	Is the Certificate of Analysis available for the drum or batch?
Actual %NCO recorded	Has the actual CoA %NCO value been logged?
TDS comparison	Is the value inside the supplier specification range?
Design comparison	How far is the CoA %NCO from the formula design value?
EW calculated	Has isocyanate EW been recalculated using 4,200 ÷ %NCO?
Index impact checked	Does the EW change shift the actual index?
Supplier change	Is this a new supplier or new grade source?
Storage condition	Was the drum stored sealed, dry, and correctly?
Moisture risk	Is the drum aged, opened, damaged, or suspect?
In-house verification	Is %NCO verification needed for this product?
Formula decision	Should TDI or MDI quantity be adjusted before the run?
Documentation	Has the decision been recorded?

This checklist prevents the most common %NCO mistake: accepting the raw material as commercially conforming while failing to check whether the formula still matches the actual drum value.

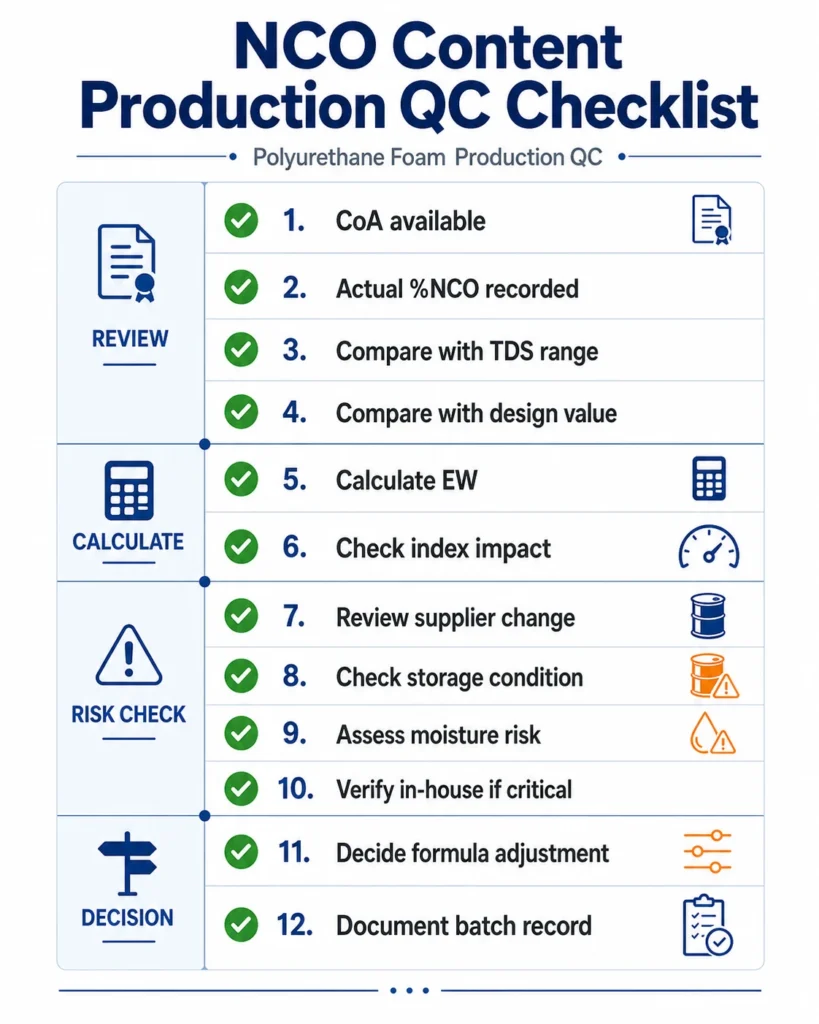

NCO content production QC checklist for polyurethane foam isocyanate drums

Practical Decision Thresholds for %NCO Variation

Not every %NCO difference requires a formula change. The decision should be based on index impact.

A practical guide:

%NCO Deviation from Design	Typical Index Shift	Action Required
Less than ±0.5%	Around 1 point	Record and monitor
±0.5% to ±1.0%	Around 1–2 points	Recalculate index and review adjustment
More than ±1.0%	3+ points	Adjust isocyanate quantity before run

These are practical starting thresholds. High-specification products may require tighter limits.

The main rule: do not decide by habit. Decide by calculation.

Correct Workflow for NCO Content Control

A reliable %NCO workflow should include these steps:

Receive CoA with every isocyanate drum or batch.
Record supplier, grade, drum number, date, and actual %NCO.
Calculate isocyanate EW using 4,200 ÷ %NCO.
Compare the EW with the formula design value.
Recalculate actual index if the difference is meaningful.
Adjust TDI or MDI quantity if required.
Check storage and moisture exposure risk.
Verify %NCO in-house for critical or suspect drums.
Record the final decision before production.

This workflow prevents a raw material data mistake from becoming a foam property problem.

Use the PolymerIQ NCO / TDI Index Calculator

The PolymerIQ NCO / TDI Index Calculator helps production teams use the actual CoA %NCO value correctly.

Use it when a new TDI or MDI drum arrives, CoA %NCO differs from the formula design value, you switch isocyanate supplier, a drum is aged or suspect, foam hardness changes after a new isocyanate batch, compression set changes without a clear process cause, or you need to confirm TDI or MDI parts for target index.

Open the NCO / TDI Index Calculator →

For the foundation explanation of %NCO, read NCO Content in Isocyanate: What %NCO Means in PU Foam Formulation.

For the TDS vs CoA explanation, read TDS %NCO vs CoA %NCO: Why Your PU Foam Formula Must Use the Drum Value.

For the complete equivalent weight guide, read Equivalent Weight in Polyurethane Foam: Complete Calculation Guide.

For the full isocyanate index method, read Isocyanate Index Calculation Guide for PU Foam Engineers.

FAQs

What are the most common NCO content mistakes in PU foam production?

The four most common mistakes are: using the TDS midpoint %NCO as a fixed formulation constant, not updating %NCO after switching isocyanate supplier, ignoring %NCO drift caused by moisture exposure during storage, and assuming NCO variation only matters for TDI when MDI is also affected.

Why is using the TDS midpoint %NCO a problem?

The TDS midpoint is an assumption, not a measurement. A drum at the high end and a drum at the low end of the TDS range can both be inside specification but have different equivalent weights. Using a fixed midpoint locks in an error every time the actual drum value differs from that midpoint, causing the actual running index to drift away from the formula target.

Does switching to the same isocyanate grade from a different supplier require a formula change?

Yes. Same grade does not always mean same actual %NCO. The new supplier may consistently deliver values closer to one end of the specification range. Even a 0.9% NCO difference (for example 48.3 vs 47.4) changes the equivalent weight and the actual running index. Every supplier switch should trigger a CoA review and index recalculation.

Can moisture exposure really change the %NCO of a drum?

Yes. NCO groups react with water — that’s the same blowing reaction used inside the foam. If isocyanate is exposed to atmospheric moisture through poor sealing, damaged bungs, humid storage, or repeated opening, some NCO groups can be consumed before the material reaches production. The drum may still have its original CoA value on paper, but the active %NCO entering the mixing head can be lower.

What are the warning signs that a drum may have lost active %NCO?

Long storage time after opening, damaged or poorly resealed bung, humid storage environment, visible discoloration or sediment, and unexpected foam softness when using older drums while fresh drums perform normally. For critical products, in-house %NCO verification is the safest way to confirm whether the drum’s active content still matches the original CoA.

Does %NCO variation matter for MDI as well as TDI?

Yes. MDI typically has a narrower %NCO range than TDI, but the equivalent weight formula is the same — EW = 4,200 ÷ %NCO — so any change in %NCO still changes EW. In tight-specification products like automotive foam, molded foam, or high-end furniture foam, even a small %NCO shift can affect compression set, hardness, or recovery.

What is ASTM E222?

ASTM E222 is a standard test method for determining hydroxyl groups using acetic anhydride acetylation, commonly referenced in laboratory practice for isocyanate and related material analysis. It’s one of the methods plants use for in-house verification of isocyanate %NCO when supplier CoA values need to be confirmed before production. The exact in-house method should follow the supplier’s recommendation and applicable laboratory standards.

When should I verify isocyanate %NCO in-house instead of relying on the CoA?

For high-specification products (automotive, medical, technical foam), tight-tolerance grades, drums that have been stored for a long time, drums with damaged seals or visible humidity exposure, after switching isocyanate suppliers, or when foam properties have changed unexpectedly after a new isocyanate delivery. In-house verification is risk control, not distrust.

How much %NCO change is enough to require formula adjustment?

Practical thresholds: less than ±0.5% deviation from design typically produces about 1 index point shift and can be monitored. ±0.5% to ±1.0% deviation produces 1–2 index points and should be reviewed for adjustment. More than ±1.0% deviation produces 3+ index points and generally requires adjusting the isocyanate quantity before the run. Tight-spec products may need stricter limits.

What’s the simplest QC change a foam plant can make to prevent these mistakes?

Add one step to incoming QC: when an isocyanate drum arrives, record the actual CoA %NCO, calculate the equivalent weight using EW = 4,200 ÷ %NCO, and compare it to the formula design value. If the difference is significant, recalculate the index before the drum enters production. This single discipline prevents most %NCO-related index drift.

Key Takeaways

NCO content mistakes can quietly corrupt PU foam index calculations.

The four most important mistakes are:

Using the TDS midpoint %NCO as a formulation constant.
Not updating %NCO after switching isocyanate supplier.
Ignoring %NCO drift from moisture exposure.
Assuming NCO variation matters only for TDI and not MDI.

The %NCO value controls isocyanate equivalent weight:

Isocyanate EW = 4,200 ÷ %NCO

If %NCO changes, equivalent weight changes. If equivalent weight changes, the same isocyanate parts deliver different NCO equivalents. That changes the actual running index.

The safest production habit is to read the CoA, record the actual %NCO, calculate EW, check index impact, and adjust the formula when required.

For critical products, aged drums, suspect storage, or supplier changes, in-house verification should be considered before the material enters production.

Conclusion

If your foam quality is shifting from batch to batch and the process data does not explain it, the cause may be inside the isocyanate CoA or storage history.

PolymersIQ can help audit your %NCO assumptions, calculate the true equivalent weight, verify index impact, and identify whether isocyanate variation is affecting your production baseline.

To get accurate support, please share:

Isocyanate type, supplier, and grade
CoA %NCO values for recent drums (last 5–10 if available)
Design %NCO used in your original formulation
Storage conditions and any aged or suspect drums in inventory
Target index and observed foam properties (ILD, compression set)
Description of the production issue and any adjustments already tried

Contact PolymerIQ for an isocyanate formulation audit →

May 7, 2026

4 Water Adjustment Mistakes in PU Foam Production

Introduction

Water is one of the most powerful variables in flexible polyurethane foam formulation. It is also one of the most misunderstood.

Many foam plants treat water as a density control dial. If density is too high, water is increased. If density is too low, water is reduced. The adjustment looks simple, and in many cases, the density moves in the expected direction.

But water does not only control density.

Water generates CO₂, consumes NCO, forms amine intermediates, creates urea linkages, changes the isocyanate index, affects hardness, influences compression set, and increases exotherm. That means every water adjustment affects several foam properties at once.

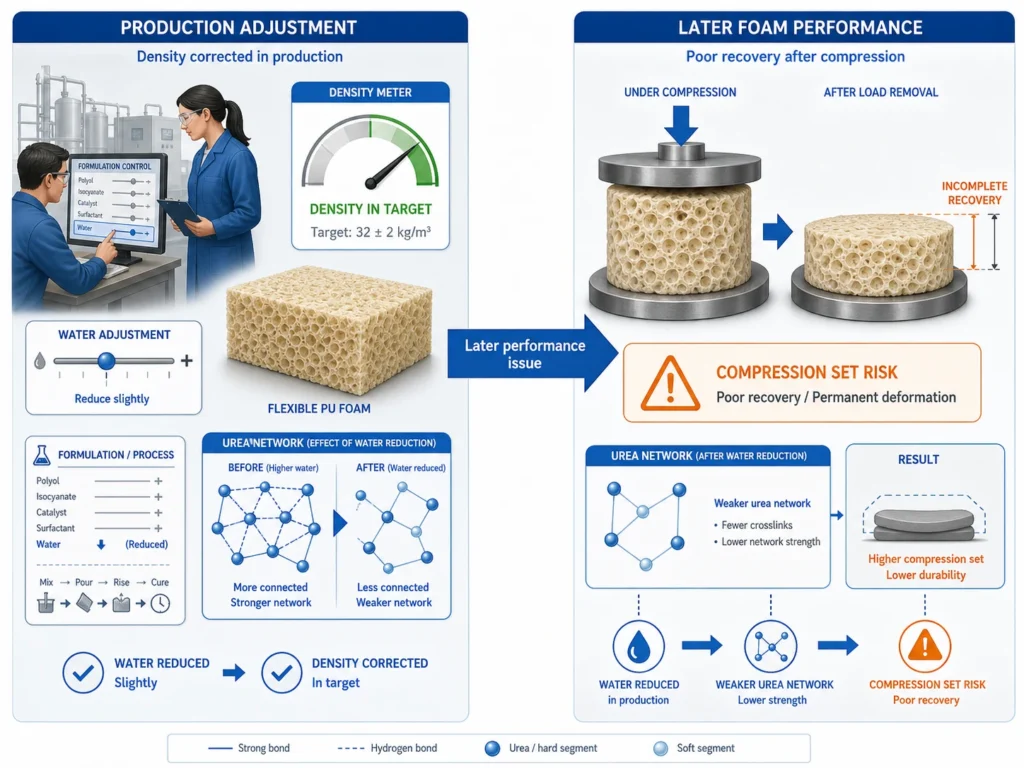

A plant may reduce water to fix density and later face compression set failures. Another plant may increase water for low-density foam and later see core discoloration or scorch risk. A production team may change water without recalculating the index and then spend weeks troubleshooting soft foam or hardness drift.

The mistake is not adjusting water. Water adjustment is part of normal foam formulation. The mistake is treating water as an independent single-function variable.

This article explains four common water adjustment mistakes that cause PU foam quality problems and how to control them before they reach the customer.

Why Water Adjustments Create Hidden Problems

Water has two connected roles in polyurethane foam.

First, it reacts with isocyanate to generate CO₂. This gas expands the foam and affects density. Second, the same reaction produces an amine, which reacts with another isocyanate group to form a urea linkage. These urea hard segments affect the foam network.

So every water adjustment changes:

CO₂ generation
Foam expansion and density
NCO consumption and isocyanate index
Urea formation
Hardness / ILD
Compression set
Exotherm

This is why a water change can appear successful at first and still create a delayed quality problem. The production team may only measure the immediate result, such as density. But the network-related effects may appear later through compression set, recovery, hardness drift, or customer complaints.

Water should be treated as a reactive formulation variable, not just a blowing-agent adjustment.

Mistake 1: Changing Water Level Without Recalculating the Index

Water consumes NCO. That means water is part of the isocyanate index calculation.

The equivalent weight of water in polyurethane foam is 9 g/eq. So when water level changes, total reactive hydrogen equivalents change. If the isocyanate amount is not recalculated, the real running index changes immediately.

For example, if a standard flexible slabstock formula increases water from 4.0 parts to 4.5 parts but the isocyanate quantity is left unchanged, the actual index can drop significantly. This type of change can move the index from 105 to about 95.4.

That is not a small adjustment. The engineer may think only water was changed. In reality, the formula now has a different index.

Possible results include:

Softer foam than expected
Lower ILD
Poorer compression set
Weaker recovery
Slower cure
Different foam feel
Confusing production troubleshooting

Every water change requires a fresh index calculation. No exception.

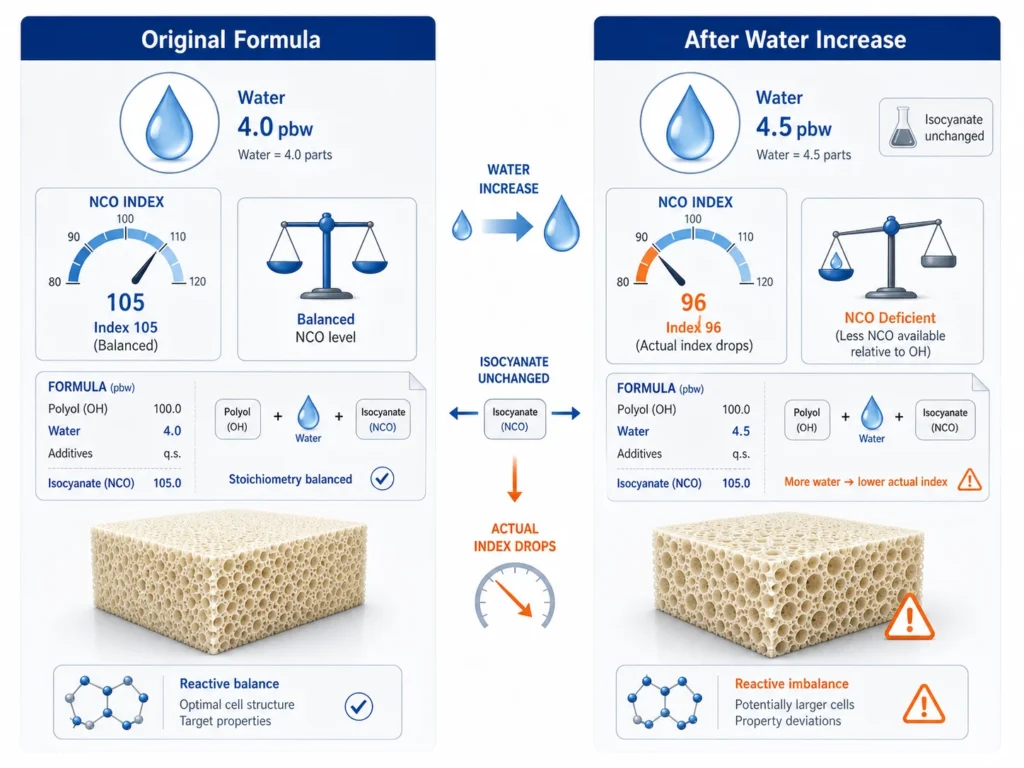

Water level change causing isocyanate index shift in PU foam formulation

Mistake 2: Correcting Density with Water but Ignoring Compression Set

Density correction is one of the most common reasons engineers adjust water.

If the foam is too dense, increasing water may lower density. If the foam is too light, reducing water may increase density. That part is understandable.

The mistake is stopping the evaluation at density.

Water also affects urea formation. Urea linkages help build the hard-segment network that supports recovery and compression set performance. If water is reduced to correct density, urea formation also decreases.

The foam may pass production density checks. It may cut normally. It may look acceptable on the floor. But the reduced urea network can weaken long-term recovery.

The problem may appear later as:

Higher compression set
Poorer recovery after sustained load
Mattress or cushion returns
Field complaints
Customer reports of permanent deformation

This is dangerous because the failure may appear weeks or months after the original water adjustment. By then, the water change may be forgotten. The plant may treat compression set failure as a new problem — but chemically, it may be connected to the earlier water adjustment.

A density correction should always be validated against compression set.

Water reduction fixing foam density but increasing compression set risk in polyurethane foam

Mistake 3: Running High Water Levels Without Managing Exotherm

High water levels can help produce lower-density foam.

But higher water also increases urea formation and heat release. At higher water levels — especially around and above 4.5 parts — exotherm can become a serious risk in flexible slabstock foam, depending on the formula and block geometry.

Large blocks are especially sensitive because heat dissipates slowly from the core. The surface may look normal while the center of the block experiences excessive temperature.

Possible signs of high exotherm include:

Core discoloration
Scorch risk
Internal cell irregularity
Reduced tensile strength in the core
Uneven physical properties
Processing instability
Odor or degradation symptoms in severe cases

High water formulas need more than a density target — they require thermal management.

Important checks include block height, pour profile, water level, catalyst balance, foam density, ventilation, raw material temperature, cooling time, and core temperature risk.

Pushing water to achieve ultra-low density without considering exotherm can create a core-quality problem that is not visible from the outside.

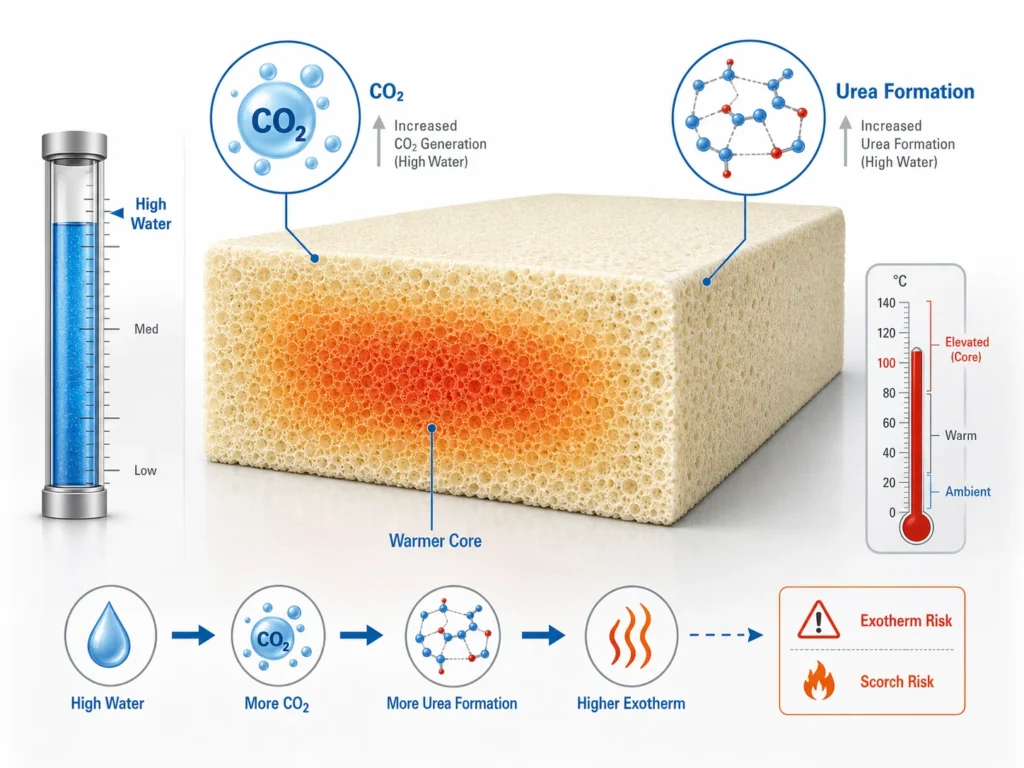

High water level causing exotherm and scorch risk in polyurethane foam slabstock core

Mistake 4: Treating Water as an Independent Variable

There is no such thing as “just changing water” in polyurethane foam.

Every water adjustment changes multiple formulation relationships at once.

Change	What Happens
Water increases	More CO₂, lower density, higher NCO demand, index drops if iso is unchanged, more urea formation, more exotherm, complex hardness response
Water decreases	Less CO₂, higher density, lower NCO demand, index rises if iso is unchanged, less urea formation, compression set risk, recovery may change

Water is connected to the whole foam system. It interacts with isocyanate index, catalyst balance, silicone surfactant, polyol functionality, crosslinker level, density target, compression set requirement, and block size / exotherm management.

This is why water should never be adjusted in isolation. A correct water adjustment requires a formulation review, not just a machine setting change.

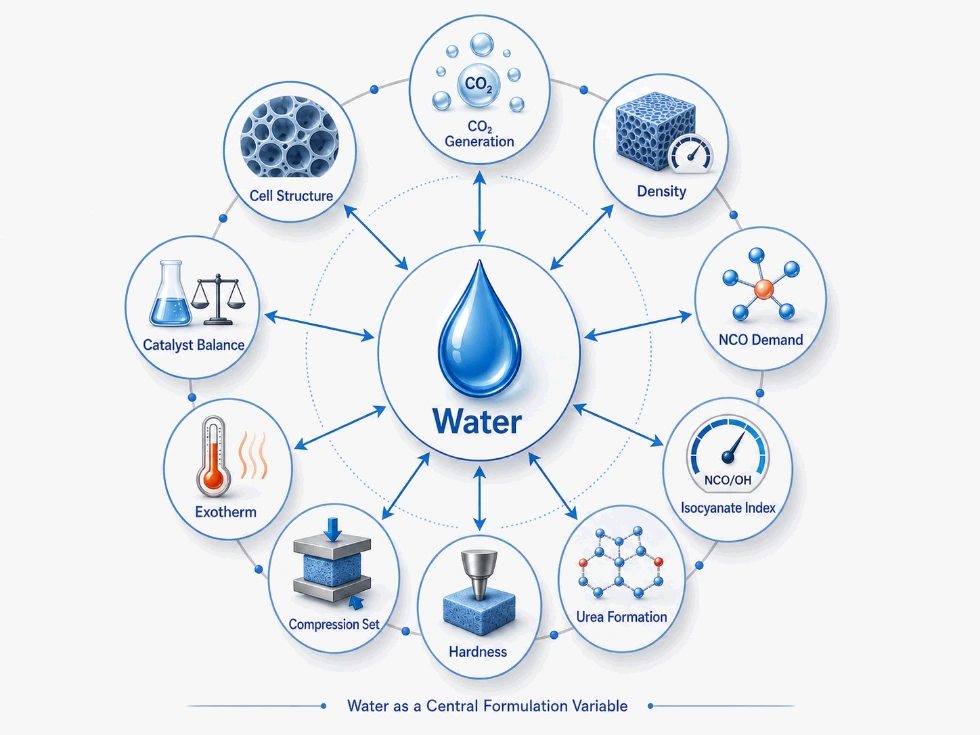

Water is not an independent variable in PU foam formulation because it affects index, density, hardness, compression set, and exotherm

What Water Adjustment Problems Look Like in Production

Water adjustment mistakes can look like unrelated production problems. That is why they are often misdiagnosed.

A plant may experience:

Density corrected but compression set later failing
Foam becoming softer after a water increase
Hardness changing more than expected
High-water formula showing core discoloration
Catalyst changes giving only temporary improvement
Foam passing density but failing long-term recovery
Different results after small water changes
Customer complaints appearing weeks after production adjustment

These problems can be confusing because the original water change may not look suspicious. The team may say “the formula did not change.”

But the formula did change. Water changed. And water is a reactive formulation component.

The first troubleshooting question should be: Was water changed recently, and was the index recalculated afterward?

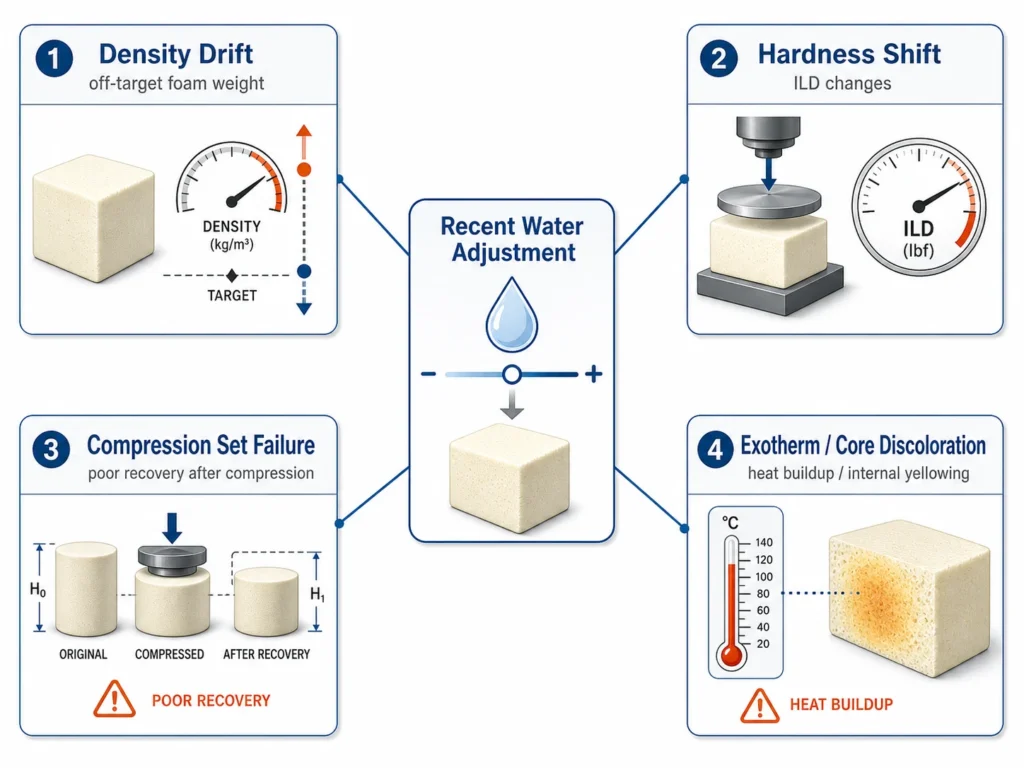

PU foam troubleshooting symptoms caused by water adjustment mistakes

Production Checklist Before Changing Water Level

Before changing water in a PU foam formulation, review the full effect using this checklist:

Checkpoint	Question
Density target	What density change is expected?
Water EW	Is water calculated as EW = 9?
Index recalculation	Has TDI or MDI demand been recalculated?
Hardness / ILD	Will hardness still meet target?
Compression set	Will recovery performance remain acceptable?
Urea formation	Does the change reduce or increase network contribution?
Exotherm	Is core temperature risk acceptable?
Catalyst balance	Does the reaction profile still match the new water level?
Cell structure	Can the surfactant system support the new expansion?
Trial validation	Will density, ILD, compression set, and core condition be tested?
Documentation	Has the water change been recorded with date and reason?

A water change should never be approved only because density improved. It should be approved because the full foam property balance remains acceptable.

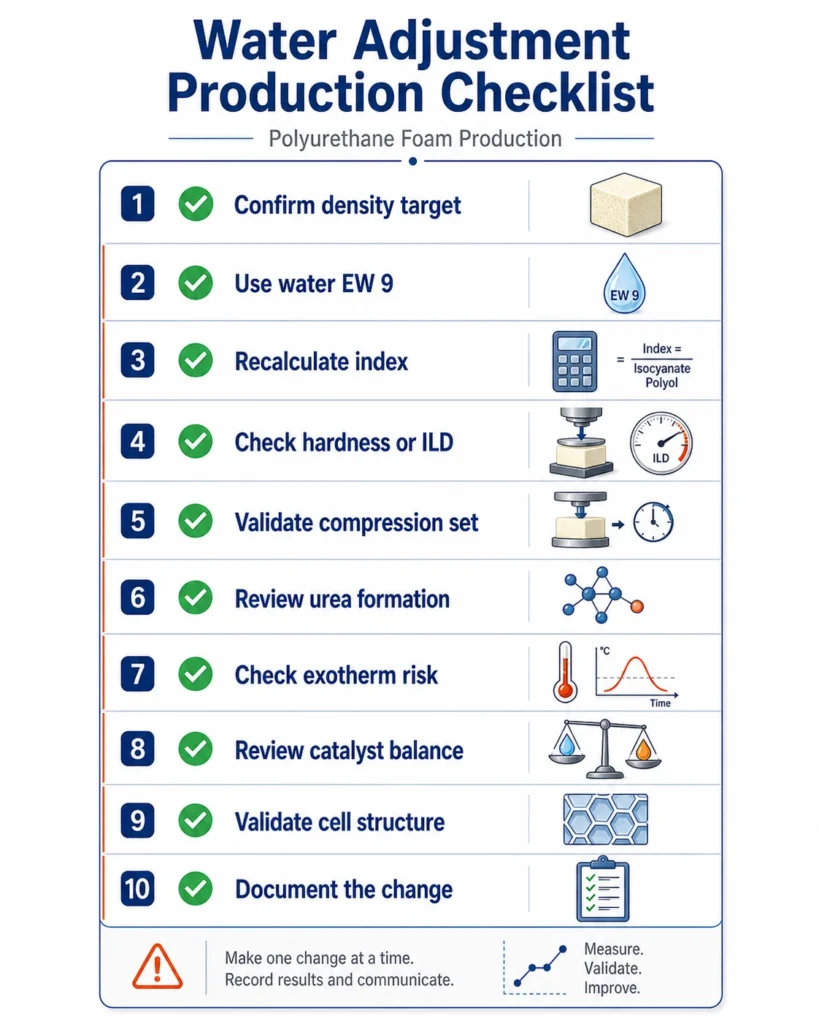

Water adjustment production checklist for polyurethane foam formulation

Correct Workflow for Water Adjustment

A safer water adjustment workflow follows this sequence:

Define the reason for the water change.
Estimate the density effect.
Calculate water reactive equivalents using EW = 9.
Recalculate total reactive hydrogen equivalents.
Recalculate required isocyanate for the target index.
Review hardness and ILD risk.
Review compression set risk.
Review exotherm risk, especially for high-water formulas.
Run a controlled production trial.
Test density, ILD, compression set, and core condition.
Document the final formula and reason for the change.

This keeps water changes controlled and traceable. It also prevents the common problem of solving one visible issue while creating a hidden performance issue.

Use the PolymerIQ Calculators

Because water consumes NCO, every water adjustment should be checked through the index calculation. The PolymersIQ Isocyanate Index Calculator helps verify the corrected isocyanate requirement after changing water level. Use it when water level changes, TDI or MDI parts need recalculation, foam becomes softer or harder after adjustment, compression set changes after density correction, or a legacy formula has undocumented water changes.

Open the Isocyanate Index Calculator →

Water is often changed to correct density. The PolymersIQ Foam Density Estimator helps estimate density impact before a water adjustment reaches production. Use it when increasing or reducing water, comparing water level options, reviewing low-density grades, or checking whether a density correction may create additional formulation risks.

Open the Foam Density Estimator →

For the chemistry behind water’s dual role, read The Dual Role of Water in Polyurethane Foam: Blowing Agent and Urea Network Builder.

For water’s effect on density, hardness, compression set, and exotherm, read How Water Level Affects PU Foam Density, Hardness, Compression Set, and Exotherm.

For the water equivalent weight calculation, read Why the Equivalent Weight of Water Is 9 in Polyurethane Foam.

FAQs

What are the most common water adjustment mistakes in PU foam production?

The four most common mistakes are: changing water level without recalculating the index, correcting density with water but ignoring compression set, running high water levels without managing exotherm, and treating water as an independent variable when it actually affects density, index, hardness, compression set, and exotherm at once.

Why does changing water affect the isocyanate index?

Water reacts with isocyanate and consumes NCO during the blowing reaction. Water’s equivalent weight is 9, which makes it a major contributor to total reactive hydrogen equivalents. When water level changes, reactive equivalents change, and the isocyanate quantity required to maintain the target index changes too. Leaving the isocyanate unchanged after a water adjustment shifts the actual running index.

Can a water reduction cause compression set failure later?

Yes. Reducing water reduces both CO₂ generation and urea formation. Urea hard segments help build the network that supports recovery. If water is reduced to fix density but the formula is not rebalanced, the network may be weaker — and compression set complaints can appear weeks or months later.

How much can the index change if I increase water by 0.5 parts and don’t adjust isocyanate?

The shift can be significant. For a typical flexible slabstock formula, increasing water from 4.0 to 4.5 parts without changing isocyanate can drop the actual index from around 105 to about 95.4. That’s not a small drift — it can move the foam well below the target performance window.

When does high water become an exotherm risk?

At water levels around and above 4.5 parts, the urea-forming reaction releases enough heat that core temperature can become a concern, especially in large slabstock blocks. The exact threshold depends on block size, density, formulation, ventilation, and ambient conditions. Larger blocks dissipate heat more slowly from the core, which makes them more sensitive.

What are the signs of high exotherm in slabstock foam?

Core discoloration (yellowing or browning at the center), scorch marks, internal cell irregularity, reduced tensile strength in the core, uneven physical properties between surface and center, processing instability, and in severe cases odor or degradation symptoms. The outside of the block may look completely normal while the core is compromised.

Why is water described as a “reactive formulation variable” instead of a blowing agent?

Because water does both jobs at once — it reacts chemically with isocyanate (consuming NCO and creating urea linkages) and also generates CO₂ for foam expansion. Calling it just a blowing agent suggests it only affects density, which understates its role. Treating water as a reactive component reminds engineers that it changes the whole foam system, not just the cell structure.

Should water adjustments be documented?

Yes. Water changes should be recorded with date, reason for the change, old and new water levels, recalculated index, recalculated isocyanate quantity, and trial results (density, ILD, compression set, core condition). Without documentation, undocumented water changes can become a hidden source of formulation drift months later.

What’s the first thing to check when foam properties drift after recent production adjustments?

Check whether water level was changed recently. If yes, check whether the index was recalculated and the isocyanate quantity adjusted. Many “mysterious” foam quality problems trace back to a water change that was made for one reason (often density) but didn’t include a full formulation review.

Can I just adjust catalyst to compensate for a water change?

No — catalyst adjustment cannot fix a stoichiometric imbalance. If water changed and the index drifted, no amount of catalyst tuning will restore the network structure that the missing or excess NCO would have built. Catalyst adjustments may temporarily mask one symptom while leaving the underlying chemistry unbalanced. The correct fix is to recalculate the index and adjust isocyanate.

Key Takeaways

Water adjustment is never a single-property change.

The four most common mistakes are:

Changing water level without recalculating the index.
Correcting density with water but ignoring compression set.
Running high water levels without managing exotherm.
Treating water as an independent variable.

Water generates CO₂, consumes NCO, forms urea linkages, changes index balance, affects hardness, influences compression set, and increases thermal load. If water changes, the formula changes.

Every water adjustment should be recalculated, documented, and validated through density, ILD, compression set, and exotherm review. A density fix is not complete until the rest of the foam property balance is confirmed.

Conclusion

If your plant has used water changes to correct density but later faced compression set failure, hardness drift, or core heat problems, the issue may not be random.

Water may have solved one problem while creating another.

PolymersIQ can help review your water adjustment history, recalculate the index impact, evaluate density and compression set risk, and identify whether your current formulation balance needs correction.

To get accurate support, please share:

Current water level and any recent changes (with dates if possible)
Foam density target and recent density results
Polyol grade, OHV, and isocyanate %NCO
Target index and observed foam properties (ILD, compression set)
Block size and any core temperature observations
Description of the production issue and any adjustments already tried

Contact PolymerIQ for a water-level formulation audit →

May 4, 2026

5 Equivalent Weight Mistakes in PU Foam Production

Introduction

Equivalent weight mistakes are some of the hardest formulation problems to diagnose in polyurethane foam production.

They rarely create an obvious machine failure. The foam may rise normally. The block may look acceptable. The operator may not see anything unusual during production. But the physical properties tell a different story — soft foam, failed compression set, dropping resilience, hardness drift between batches.

The production team responds with the usual adjustments: catalyst, silicone, water level, crosslinker dosage, cure temperature, machine settings. Some adjustments help temporarily. But if the equivalent weight values in the formula sheet are wrong, the root cause remains untouched.

Equivalent weight is the foundation of the isocyanate index calculation. If one EW value is wrong, the index becomes unreliable. If two or more EW values are wrong, the foam can fail in several properties at once, making the problem look like a complicated production issue when it is really a calculation issue.

This article covers five equivalent weight mistakes commonly found in PU foam production formulas and explains why a stoichiometric audit is often the only reliable way to find them.

Why Equivalent Weight Mistakes Are Hard to Diagnose

Equivalent weight errors live at the calculation layer. Most production troubleshooting starts at the production layer. That is why these mistakes are often missed.

When foam properties are wrong, the first checks usually include machine calibration, mixing pressure, catalyst balance, silicone performance, water level, raw material temperature, ambient humidity, cure profile, and density variation. All of these checks are important — but none of them will find a wrong equivalent weight value in a spreadsheet.

If water is entered as EW 18 instead of 9, the machine will still run. If polyol EW is copied from an older formula, the spreadsheet may still look professional. If DEOA is calculated from OHV alone and its amine hydrogen is missed, the error may be small enough to hide inside normal production variation.

The problem is not that engineers are careless. The problem is that the formula sheet can look correct while the stoichiometric foundation is wrong.

This is why equivalent weight must be audited as a system. Every reactive component must be checked. Every EW value must be verified. Every equivalent calculation must match the chemistry, not just the previous version of the formula.

Mistake 1: Using Water EW = 18 Instead of 9

This is the most damaging single equivalent weight mistake in flexible PU foam formulation.

Water has a molecular weight of 18 g/mol — but its equivalent weight in polyurethane foam is not 18. Water has two reactive hydrogens involved in the isocyanate reaction sequence. One water molecule ultimately consumes two NCO groups.

Water EW = 18 ÷ 2 = 9 g/eq

Using 18 instead of 9 cuts the calculated water contribution in half:

Water Level	EW Used	Water Equivalents
4.0 parts	9 (correct)	0.44444
4.0 parts	18 (wrong)	0.22222

That is not a small rounding error. It changes the entire index calculation. If the formula calculates isocyanate demand using water EW = 18, the spreadsheet may show the intended target index while the actual chemistry runs much lower.

This can create soft foam, ILD below target, poor compression set, weak recovery, tacky early cure, poor aging performance, and confusing response to catalyst changes.

The rule is simple: water EW is 9. Never 18.

Water equivalent weight mistake showing EW 18 versus correct EW 9 in PU foam formulation — Using water EW = 18 cuts the calculated water contribution in half and corrupts the index calculation.

Mistake 2: Copying EW Values from the Previous Formula

This mistake is very common in production plants. An engineer opens an old formula sheet, copies the equivalent weight values, changes the raw material names or parts, and sends the formula to production. It feels efficient — but it can be wrong.

Equivalent weight is not a number that should be copied blindly. It must be calculated from the actual raw material data.

For polyol: Polyol EW = 56,100 ÷ OHV. If the new polyol batch has a different OHV, the EW changes.

For isocyanate: Isocyanate EW = 4,200 ÷ %NCO. If the new isocyanate batch has a different %NCO, the EW changes.

Copying last month’s EW value into this month’s formula may create a hidden index error. This problem is especially dangerous because the copied value may have been correct at one time. That makes it look trustworthy. But a value that was correct for one batch may not be correct for the next batch.

The rule: do not copy EW values from old formulas without recalculating them from current CoA data.

Copying old equivalent weight values from previous formula causing PU foam calculation error — Equivalent weight values should be recalculated from current raw material data, not copied from old formulas.

Mistake 3: Using TDS Midpoint Instead of CoA Actual Value

The Technical Data Sheet gives a specification range. The Certificate of Analysis gives the actual batch value. These are not the same thing.

A polyol TDS may show OHV range: 45–55 mg KOH/g. A formulator may choose the midpoint (OHV 50) and calculate:

EW = 56,100 ÷ 50 = 1,122 g/eq

But if the actual CoA OHV is 47:

EW = 56,100 ÷ 47 = 1,194 g/eq

That is a difference of 72 g/eq. The batch is still inside the TDS range, but the equivalent weight is meaningfully different from the formula assumption.

The same principle applies to isocyanate %NCO. The TDS may give a range, but the CoA gives the value for the specific batch or drum being used.

Using TDS midpoint values can create a formula that looks reasonable but does not match the actual raw materials in production.

The rule: use CoA actual values for EW calculation whenever batch-specific data is available.

Mistake 4: Calculating DEOA Equivalent Weight from OHV Alone

DEOA is a common crosslinker in flexible foam formulation — and a common source of equivalent weight error.

DEOA contains:

Two hydroxyl groups
One reactive amine hydrogen

If the equivalent weight is calculated from OHV alone, the hydroxyl contribution is counted, but the amine hydrogen can be missed. That creates an incomplete reactive equivalent calculation.

Using only the OHV-based approach may give an equivalent weight around 52.6 g/eq. But if all three reactive groups are considered:

DEOA EW = Molecular Weight ÷ Reactive Group Count = 105.14 ÷ 3 = 35.0 g/eq

That difference matters. DEOA is often used at low levels, so the error may not look dramatic in the formula. But it can still affect crosslink density and index accuracy. The larger problem is that the foam network may not develop as intended.

Symptoms can include lower resilience, poorer compression set, softer foam than expected, weaker network structure, and confusing response to crosslinker adjustment.

The rule: for amine-functional crosslinkers or chain extenders, account for all active hydrogens, not only hydroxyl value.

DEOA equivalent weight mistake showing OHV-only calculation versus all reactive groups — DEOA contains hydroxyl groups and a reactive amine hydrogen, so OHV-only EW can miss part of its reactivity.

Mistake 5: Treating EW as a Fixed Constant

This is the mindset error behind many equivalent weight mistakes.

Equivalent weight often feels like a material property. It is not. Equivalent weight is a calculated value. For polyol, it depends on OHV. For isocyanate, it depends on %NCO. For water, it depends on molecular weight and reactive hydrogen count. For crosslinkers, it depends on their reactive functionality.

That means some EW values are fixed, and others are batch-dependent:

Component	Status	Reason
Water	Fixed at 9	Reaction stoichiometry never changes
Polyol	Batch-dependent	Changes with OHV
Isocyanate	Batch-dependent	Changes with %NCO
Crosslinker	Calculation-dependent	Depends on correct reactive group count

A formula may be correct on the day it was developed and become less accurate later as raw material batches change. This is why EW should be treated as a live calculation.

The rule: whenever OHV or %NCO changes, equivalent weight must be recalculated.

Equivalent weight as a live calculation based on OHV and percent NCO changes — Equivalent weight should be recalculated when OHV or %NCO changes.

Why Compounding EW Errors Are Hard to Diagnose

One equivalent weight error can create a consistent property shift. Two equivalent weight errors can create a confusing foam problem.

For example, a formula may contain water EW entered as 18 instead of 9, DEOA EW calculated from OHV alone, and polyol EW copied from an old CoA value. Each mistake changes the reactive equivalent calculation. Together, the errors can distort both the index and the foam network structure.

The foam may show several problems at once: ILD below target, poor resilience, compression set failure, weak recovery, and property drift between batches.

The production team may treat these as separate problems. They may increase crosslinker to improve resilience. They may change catalyst to adjust cure. They may adjust temperature to improve compression set. Each correction may partially help one symptom while disturbing another.

This is how legacy formulas become complicated. Over time, the plant adds practical corrections on top of a wrong calculation foundation. The formula becomes harder to understand, harder to transfer, and harder to troubleshoot.

The only reliable solution is a full stoichiometric audit.

Stoichiometric Audit Checklist for Equivalent Weight Errors

A proper equivalent weight audit should not only check the final index number. It should check every input behind the index.

Audit Point	What to Check
Polyol EW	Calculated from current CoA OHV
Isocyanate EW	Calculated from current CoA %NCO
Water EW	Confirmed as 9
Crosslinker EW	Based on correct reactive functionality
Chain extender EW	Includes all active hydrogens
Copied values	No EW copied from old formula without recalculation
TDS vs CoA	CoA values used where available
Reactive equivalents	Parts divided by correct EW
Total H equivalents	All reactive components included
Target index	Calculated from correct total equivalents
Actual index	Checked against actual machine delivery
Formula history	Old empirical corrections reviewed

This audit should be performed whenever a formula is inherited from another plant, has been adjusted many times, shows inconsistent foam properties, fails compression set without a clear process cause, doesn’t match the formula target on hardness, faces new polyol or isocyanate batch CoA changes, or is being transferred to another production line.

The goal is to verify the chemistry before making more production adjustments.

Compounding equivalent weight errors requiring stoichiometric audit in PU foam production

Use the PolymerIQ Calculators

The PolymerIQ Equivalent Weight Calculator helps reduce manual equivalent weight mistakes. Use it whenever a new polyol batch arrives, the CoA OHV changes, you are checking old formula sheets, preparing index calculations, or verifying equivalent weight before production.

Open the Equivalent Weight Calculator →

The PolymerIQ Isocyanate Index Calculator helps verify whether the corrected EW values produce the intended NCO requirement and target index. Use it to check total reactive hydrogen equivalents, required NCO equivalents, TDI or MDI parts, actual running index, and the effect of correcting water EW or crosslinker EW.

Open the Isocyanate Index Calculator →

For the complete equivalent weight calculation guide, read Equivalent Weight in Polyurethane Foam: Complete Calculation Guide.

For the water-specific calculation mistake, read Why the Equivalent Weight of Water Is 9 in Polyurethane Foam.

For the full isocyanate index method, read Isocyanate Index Calculation Guide for PU Foam Engineers.

FAQs

What are the most common equivalent weight mistakes in PU foam production?

The five most common mistakes are: using water EW = 18 instead of 9, copying EW values from previous formulas without recalculating, using TDS midpoint values instead of CoA actual values, calculating DEOA equivalent weight from OHV alone (missing the amine hydrogen), and treating equivalent weight as a fixed constant instead of a live calculation.

Why is water EW always 9 in PU foam?

Water has two reactive hydrogens that consume two NCO groups during the blowing reaction. So even though water’s molecular weight is 18, its equivalent weight is 18 ÷ 2 = 9 g/eq. This applies to flexible foam, rigid foam, HR foam, and any PU system that uses water as a blowing or reactive component.

Can I copy equivalent weight values from an old formula sheet?

No. Polyol EW depends on the actual OHV of the current batch, and isocyanate EW depends on the actual %NCO of the current batch. Copying old EW values can carry forward outdated raw material data into a new formula. Always recalculate from current CoA values.

Why shouldn’t I use the TDS midpoint for equivalent weight calculation?

The TDS gives a specification range, which is a commercial conformance window — not a formulation input. The midpoint of the range may be tens of g/eq away from the actual batch value. Using the midpoint can create a formula that looks reasonable but does not match the raw materials actually in production.

Why does DEOA require a different EW calculation than a normal polyol?

DEOA is amine-functional. It contains two hydroxyl groups plus one reactive amine hydrogen — three reactive groups total. An OHV-based calculation only counts the hydroxyl groups and misses the amine contribution. The correct approach is to divide molecular weight by total reactive group count: 105.14 ÷ 3 = 35.0 g/eq.

How do I know if my formula has compounding EW errors?

The signal is usually multiple foam properties failing at once — for example, low ILD, poor resilience, and compression set failure on the same product. Single EW errors usually create one consistent property shift. Multiple overlapping symptoms that don’t respond well to process adjustments suggest more than one calculation error in the spreadsheet.

When should I run a stoichiometric audit on my formula?

Run an audit when a formula is inherited from another plant, has been adjusted many times over the years, shows inconsistent foam properties, fails compression set without a clear process cause, or is being transferred to a new production line. Any time foam properties don’t match the formula target and process variables look normal, the calculation foundation should be checked.

Will fixing equivalent weight errors solve my foam quality problem?

If the EW errors are the root cause, yes — but the fix usually requires more than just correcting one cell. After updating EW values, the entire index must be recalculated, and the isocyanate quantity may need to change. The corrected formula should then be validated in production, because legacy formulas often contain empirical corrections layered on top of the calculation error.

How often should equivalent weight values be checked?

Polyol EW should be checked whenever a new polyol batch arrives or the CoA OHV is different from the design value. Isocyanate EW should be checked whenever a new isocyanate batch arrives or the CoA %NCO changes. Water EW should be confirmed as 9 once and protected against accidental changes. Crosslinker and chain extender EW should be reviewed whenever a new material is introduced.

Is a full stoichiometric audit really necessary, or can I just fix the most obvious mistake?

For a single isolated error, a targeted fix can work. But if the formula has been adjusted many times, multiple errors may have accumulated. A full audit is the only way to know whether the calculation foundation is sound. Skipping the audit and fixing just one cell often masks the deeper problem and leaves other errors untouched.

Key Takeaways

Equivalent weight mistakes can silently damage PU foam production because they corrupt the calculation foundation.

The five most important mistakes are:

Using water EW = 18 instead of 9.
Copying EW values from the previous formula.
Using TDS midpoint values instead of CoA actual values.
Calculating DEOA equivalent weight from OHV alone.
Treating EW as a fixed constant instead of a live calculation.

Water EW is always 9 in polyurethane foam index calculation. Polyol EW must be recalculated when OHV changes. Isocyanate EW must be recalculated when %NCO changes. Amine-functional crosslinkers and chain extenders must account for all active hydrogens.

If a formula has been adjusted many times over the years, the problem may not be the latest catalyst, silicone, or machine setting. The problem may be an old equivalent weight error that was never audited.

Conclusion

If your foam is consistently off target and every process adjustment only gives partial improvement, the problem may not be on the production floor.

It may be inside the calculation foundation of the formula sheet.

PolymersIQ can help audit every reactive component, every equivalent weight value, and every index calculation to identify hidden stoichiometric errors.

To get accurate support, please share:

A copy of your current formula sheet, including EW values
Polyol grade, OHV, and supplier
Isocyanate type and current CoA %NCO
Water level and any crosslinkers or chain extenders in use
Target index and observed foam properties (ILD, compression set, density)
Description of the production issue and any adjustments already tried

Contact PolymerIQ for a stoichiometric formulation audit →

May 2, 2026

4 Polyol Functionality Mistakes in PU Foam Production

Introduction

Compression set failures are often treated as process problems.

The foam plant checks catalyst balance. The engineer raises the index. Crosslinker dosage is increased. Cure temperature is reviewed. Density is checked again. Each correction may improve the foam slightly, but the compression set problem does not fully disappear.

When this happens, the issue may not be the process. It may be polyol functionality.

Polyol functionality controls how many reactive hydroxyl groups each molecule contributes to the polymer network. It controls branching, junction points, network architecture, creep resistance, and compression set performance.

Hydroxyl value tells you how much isocyanate the polyol needs.
Functionality tells you what kind of network the polyol can build.

Confusing these two values leads to the wrong correction. A foam plant may keep adjusting OHV, catalyst, crosslinker, or index while the real problem is insufficient network architecture.

This article explains four polyol functionality mistakes that create PU foam compression set problems and how to avoid them in formulation review.

Why Functionality Mistakes Are Difficult to Diagnose

Polyol functionality problems are difficult to diagnose because they can look like other foam problems.

A low-functionality network may show:

High compression set
Poor recovery
Creep under sustained load
Lower durability
Marginal resilience
Field complaints after use
Partial response to crosslinker increase
Partial response to index adjustment

These symptoms can make the plant believe the issue is catalyst, cure, crosslinker, density, or index. Those variables matter, but they do not always solve the root cause.

If the base polyol system does not provide enough branching, the foam network is structurally limited before production begins.

This is why functionality should be reviewed whenever compression set problems persist after normal process and index corrections.

Mistake 1: Raising OHV to Fix a Functionality Problem

The first mistake is trying to fix compression set by raising OHV when the real problem is functionality.

This happens because engineers often associate higher OHV with stronger foam.

But OHV and functionality are not the same:

OHV measures reactive hydroxyl groups per gram.
Functionality measures reactive hydroxyl groups per molecule.

Changing OHV changes equivalent weight and isocyanate demand. It does not automatically create more network branch points.

Parameter	Polyol A	Polyol B
OHV	51	56
Functionality	3.0	3.0
Equivalent Weight	1,100	1,002
Molecular Weight	3,300	3,006
Network Junctions Per Molecule	3	3

The higher-OHV polyol changes stoichiometry, but the functionality remains the same. The number of junction points per molecule has not improved.

If the compression set problem is caused by insufficient branching, simply raising OHV may not solve it. It may only create a new index-calculation requirement.

The rule is simple:

Do not use OHV to solve a functionality problem.
Use OHV for equivalent weight and index calculation.
Use functionality to evaluate network architecture.

Raising hydroxyl value does not fix low polyol functionality in PU foam formulation

Mistake 2: Not Calculating Average Functionality in Blended Polyol Systems

Most flexible foam formulas use more than one polyol. A formulation may include:

Base polyol
Polymer polyol
Specialty polyol
Graft polyol
High-functionality modifier
Softening polyol

Each component can have a different functionality.

The mistake is using the base polyol functionality as if it represents the whole polyol system. It does not. The blend has its own average functionality.

If the formula uses blended polyols, average functionality must be calculated. A simplified formula is:

Average Functionality = Total OH Equivalents ÷ Total Moles of Polyol

Or: f_avg = Σ(parts ÷ EW) ÷ Σ(parts ÷ MW)

Example blend:

Polyol	Parts	Functionality	EW	MW
Base polyol	60	3.0	1,100	3,300
SAN polymer polyol	40	2.5	2,000	5,000

Calculation:

Base OH equivalents: 60 ÷ 1,100 = 0.05455
SAN OH equivalents: 40 ÷ 2,000 = 0.02000
Total OH equivalents: 0.07455
Base moles: 60 ÷ 3,300 = 0.01818
SAN moles: 40 ÷ 5,000 = 0.00800
Total moles: 0.02618
Average functionality: 0.07455 ÷ 0.02618 = 2.85

The system may appear to use a trifunctional base polyol, but the actual blended average is 2.85. That matters for compression set and recovery.

Average functionality calculation for blended polyol systems in polyurethane foam

Why Average Functionality Matters

A blended polyol system can have a lower effective functionality than expected. This can happen even when the base polyol looks correct.

If the average functionality drops too low, the foam network may become less branched. That can increase creep and compression set risk.

A system around f = 2.85 may still work in many flexible foam applications, but it may sit closer to the edge of compression set requirements than a system closer to f = 3.0.

The key point is not that every blend must have the highest possible functionality. The key point is that the engineer must know the actual blend functionality before diagnosing compression set problems.

Without this calculation, the plant may keep correcting symptoms instead of understanding the network limitation.

Average functionality impact on polyurethane foam network strength and compression set

Mistake 3: Trusting Polymer Polyol TDS Functionality Blindly

Polymer polyols can make functionality interpretation more complicated.

A polymer polyol Technical Data Sheet may list a nominal functionality value. But that number may not fully describe the effective network contribution of the material in your blend.

Polymer polyols can contain:

Carrier polyol
SAN solids
Molecular weight distribution effects
Different effective reactive contribution
Blend behaviour that differs from the simple TDS number

This does not mean the TDS is useless. It means the TDS is the starting point, not the full formulation answer.

For blended systems, the engineer should calculate the effective average functionality from the actual formulation components. If a polymer polyol makes up a large part of the formula, its effective contribution matters.

Using only the base polyol functionality can overestimate the network quality of the blend.

The rule is: for blended polyol systems, calculate average functionality from the blend. Do not assume it from one TDS value.

[IMAGE 5 — POLYMER POLYOL TDS VS BLEND] Placement: After the section “Mistake 3”, before “Mistake 4”. Filename: polymer-polyol-tds-functionality-blend-mistake.jpg ALT text: Polymer polyol TDS functionality mistake in blended polyurethane foam systems Caption: Polymer polyol TDS functionality should be checked against the effective functionality of the full blend. ChatGPT image prompt: “Create a clean side-by-side technical infographic showing polymer polyol TDS functionality versus effective blend functionality. Left side: Polymer Polyol TDS showing nominal functionality. Right side: real blend calculation including base polyol, polymer polyol, parts, EW, MW, and resulting average functionality. Add a warning that the TDS value is a starting point, not the full blend answer. Professional industrial consultancy style, white background, blue and grey palette with subtle orange highlights. No logos. No brand names.”

Polymer polyol TDS functionality mistake in blended polyurethane foam systems

Mistake 4: Switching Polyol Supplier Without Verifying Functionality

A supplier switch can change foam performance even when OHV appears unchanged. This is one of the most dangerous functionality mistakes.

A new supplier may offer a replacement polyol with the same OHV and similar viscosity. Incoming QC may pass. Equivalent weight may be the same. The index calculation may not change.

But functionality may be different.

Property	Original Polyol	Replacement Polyol
OHV	51	51
Equivalent Weight	1,100	1,100
Functionality	3.0	2.6
Index Calculation	Same	Same
Network Architecture	Stronger branching	Lower branching

The formula may look unchanged. But the foam network is different.

The issue may not appear immediately on the production floor. It may show up later through compression set, creep, or field returns.

This is why a supplier switch is a formulation event. It should trigger:

OHV review
Equivalent weight calculation
Functionality verification
Average functionality review
Trial validation
Compression set testing
Recovery testing
Final formulation approval

Same OHV does not guarantee same network architecture.

Polyol supplier switch with same OHV but different functionality causing foam compression set risk

What These Mistakes Look Like in Production

Functionality mistakes often appear as persistent foam problems that do not respond cleanly to normal corrections.

Common symptoms include:

Compression set remains high
Crosslinker helps only slightly
Index increase helps temporarily but does not solve the issue
Foam creeps under sustained load
Recovery weakens after aging
Customer complaints appear weeks after production
Supplier change happened before the issue
Blended polyol system was never reviewed
Average functionality is unknown
OHV looks correct but foam performance changed

The key warning sign is this: the formula looks stoichiometrically correct, but the foam network behaves incorrectly.

That is when functionality must be reviewed.

Diagnostic checklist for polyol functionality mistakes causing PU foam compression set problems

Production Checklist for Polyol Functionality Review

Use this checklist when reviewing functionality-related foam problems:

Review Point	Question
OHV vs functionality	Are these being treated as separate values?
Base polyol	What is the functionality of the base polyol?
Polymer polyol	What is the functionality and effective contribution?
Blend calculation	Has average functionality been calculated?
Supplier change	Did functionality change with a new supplier?
Same OHV check	Are two same-OHV polyols being assumed equivalent?
Compression set	Is failure continuing after normal corrections?
Crosslinker response	Does crosslinker only partially improve the result?
Index status	Is the index correct but performance still weak?
Network architecture	Does the polyol system have enough branching?
Trial validation	Were compression set and recovery tested after any supplier or blend change?

This checklist helps separate stoichiometric problems from network architecture problems.

Correct Workflow for Functionality Troubleshooting

When compression set persists, use this workflow:

Confirm compression set test method and result.
Verify density, cure, index, and water level.
Confirm OHV and equivalent weight.
Review base polyol functionality.
Review polymer polyol functionality.
Calculate average functionality for the blend.
Check whether a supplier switch occurred.
Compare same-OHV polyols for functionality differences.
Review whether crosslinker is compensating for low branching.
Decide whether the correction requires a formulation change.

The goal is to avoid endless process adjustments when the real issue is polyol architecture.

Use the PolymerIQ Equivalent Weight Calculator

The PolymersIQ Equivalent Weight Calculator helps calculate EW from OHV so you can build accurate functionality and blend calculations.

Use it when reviewing polyol OHV, comparing same-OHV polyols, preparing average functionality calculations, checking formula stoichiometry, or reviewing supplier changes.

Open the Equivalent Weight Calculator →

For the foundation explanation of polyol functionality, read Polyol Functionality in Polyurethane Foam: What It Means and Why It Matters.

For the technical network article, read How Polyol Functionality Controls Crosslink Density and Compression Set.

For the OHV explanation, read Hydroxyl Value in Polyurethane Foam: What OHV Means and How to Calculate Equivalent Weight.

For the complete equivalent weight guide, read Equivalent Weight in Polyurethane Foam: Complete Calculation Guide.

FAQs

What are the most common polyol functionality mistakes in PU foam production?

The four most common mistakes are: raising OHV to fix a functionality problem (these are different values that solve different problems), not calculating average functionality in blended polyol systems, trusting polymer polyol TDS functionality blindly without verifying its effective contribution to the blend, and switching polyol supplier without verifying that the replacement has the same functionality as the original.

Why doesn’t raising OHV solve compression set problems caused by low functionality?

OHV controls equivalent weight and isocyanate demand. Functionality controls how many junction points each polyol molecule contributes to the network. A higher-OHV polyol with the same functionality has a smaller molecule, but the number of branch points per molecule is unchanged. If compression set fails because the network has too few branch points, increasing OHV alone won’t add the missing branching — it will only change the stoichiometry.

How do I calculate average functionality in a blended polyol system?

Use this formula: f_avg = Σ(parts ÷ EW) ÷ Σ(parts ÷ MW). For each polyol in the blend, calculate OH equivalents (parts ÷ EW) and moles (parts ÷ MW). Sum each across all polyols, then divide total OH equivalents by total moles. The result is the actual average functionality of the blend, which can be different from the base polyol’s nominal functionality.

Can a 60/40 base/polymer polyol blend have lower functionality than the base polyol?

Yes. If the polymer polyol has lower functionality than the base polyol (e.g., 2.5 vs 3.0), the blended average will sit between the two values, weighted by mole contribution. A 60/40 blend of f=3.0 base polyol and f=2.5 polymer polyol typically gives an average around f=2.85, not 3.0. This drop can be enough to push the network closer to compression set risk in tight-spec applications.

Why is polymer polyol functionality complicated to interpret?

Polymer polyols contain a carrier polyol plus dispersed solids (SAN, PHD, or similar). The TDS may list a nominal functionality value, but the effective contribution to the network depends on the carrier’s functionality, the solids content, the molecular weight distribution, and how the system reacts during foam formation. The TDS number is a starting point, not the complete answer for blend calculations.

Can a same-OHV polyol from a different supplier really change foam performance?

Yes — this is one of the most dangerous functionality mistakes. Two polyols with the same OHV (e.g., 51 mg KOH/g) and the same equivalent weight (1,100 g/eq) can have different functionalities (for example 3.0 vs 2.6). The index calculation looks identical, but the network architecture is different. The replacement polyol may produce foam that meets initial hardness targets but fails compression set due to weaker branching.

What should I do when switching polyol suppliers?

Treat the supplier switch as a formulation event, not just a purchasing event. Verify OHV and EW, but also verify functionality. Calculate average functionality if the system is blended. Run a production trial that includes compression set and recovery testing — not just density and ILD. Approve the new formula only after confirming foam performance, not just stoichiometric numbers.

When should I suspect a polyol functionality mistake?

Suspect functionality when compression set remains high after standard corrections, when crosslinker increase only partially helps, when foam creeps under sustained load despite a correct index, when the formula looks stoichiometrically correct but performance has changed, when a supplier switch occurred before the issue appeared, or when the blended polyol system has never had its average functionality calculated.

Can I fix a low-functionality blend with crosslinker?

Crosslinkers can add local junction density and may give partial improvement, but they cannot fully replace the architecture of the base polyol system. The long polyol chains in the blend still carry their original structure. If the underlying average functionality is too low for the application, crosslinker tweaks treat the symptom while leaving the architecture problem in place. The better fix is usually to adjust the polyol grade or blend ratio.

Does this matter for HR foam and high-performance grades more than standard slabstock?

Yes. HR foam, automotive foam, molded foam, and high-load applications depend heavily on network architecture for compression set, creep, and durability. These foam grades are usually designed around tighter functionality targets, so functionality mistakes have larger consequences. Standard flexible slabstock with relaxed compression set requirements has more tolerance for functionality variation, but tight-spec products do not.

Key Takeaways

Polyol functionality mistakes can create compression set problems that process adjustments cannot fully solve.

The four most important mistakes are:

Raising OHV to fix a functionality problem.
Not calculating average functionality in blended polyol systems.
Trusting polymer polyol TDS functionality blindly.
Switching polyol supplier without verifying functionality.

OHV and functionality are not interchangeable:

OHV controls equivalent weight and isocyanate demand.
Functionality controls network architecture and branching.

A same-OHV replacement polyol can still create different foam performance if functionality changes. Blended systems need average functionality calculation.

If compression set keeps failing after catalyst, index, cure, and crosslinker corrections, the polyol system architecture should be reviewed.

Conclusion

If your foam is failing compression set and every process correction only gives partial improvement, the issue may be average polyol functionality.

PolymersIQ can help review your base polyol, polymer polyol, blend ratio, and effective network architecture to identify whether the formulation is structurally capable of meeting your compression set target.

To get accurate support, please share:

Polyol grade(s), supplier(s), OHV, and reported functionality
Polymer polyol type and TDS data
Blend ratios and component parts
Target compression set and observed test results
Recent supplier switches or grade changes
Description of the foam quality issue and adjustments already tried

Contact PolymerIQ for a polyol functionality review →

May 1, 2026

5 Hydroxyl Value Mistakes That Create PU Foam Production Problems

Introduction

Hydroxyl value mistakes are dangerous because they rarely look like hydroxyl value mistakes.

They usually appear as ordinary foam production problems.

The foam is harder than expected. The next batch is softer. Compression set becomes marginal. The same formula behaves differently after a new polyol delivery. Operators blame the machine. Engineers adjust catalyst. The team checks temperature, mixing pressure, silicone, and water.

But the cause may be much simpler.

The incoming polyol OHV changed, and nobody used the new value correctly.

Hydroxyl value affects equivalent weight. Equivalent weight affects isocyanate demand. Isocyanate demand affects the real running index. And the real running index affects foam hardness, compression set, resilience, aging, and batch consistency.

This article covers the five hydroxyl value mistakes that turn raw material variation into PU foam production problems — and the QC checklist every foam plant should use to prevent them.

Why OHV Mistakes Are So Costly

Hydroxyl value is not just a raw material specification.

It is a formulation control value.

A polyol can arrive fully inside the supplier’s TDS specification range and still require a formulation review. The batch may be commercially acceptable, but that does not automatically mean it matches the formulation baseline used in your plant.

This is where many production problems begin.

If the formula was designed around OHV 51, but the incoming batch arrives at OHV 47, the equivalent weight changes. If the isocyanate quantity is not recalculated, the real running index changes. The formula sheet may still look correct. The foam chemistry is no longer the same.

This is why OHV mistakes create silent production drift. They do not usually stop the machine. They do not always cause collapse. They often produce foam that looks normal but tests outside the target specification.

Mistake 1: Using the TDS Nominal Value Instead of the CoA Actual Value

The first mistake is using the nominal OHV from the Technical Data Sheet instead of the actual OHV from the Certificate of Analysis.

The TDS gives a specification range or nominal value. It tells you what the supplier considers acceptable for that grade.

But the CoA gives the actual value for the delivered batch. Those are not the same thing.

For example, a polyol TDS may show:

OHV range: 45–55 mg KOH/g

The formula may have been designed around OHV 51. But the latest delivery may arrive at OHV 47. Both values may be inside the acceptable TDS range. But they produce different equivalent weights:

OHV Used	Equivalent Weight
51 mg KOH/g	1,100 g/eq
47 mg KOH/g	1,194 g/eq

If the plant continues using the old design value, the calculation baseline is wrong.

Every production adjustment made after that — catalyst changes, water changes, temperature changes — may be built on a false formulation baseline.

The fix is simple: use the actual CoA OHV value for every batch.

TDS nominal hydroxyl value versus Certificate of Analysis actual OHV mistake in PU foam formulation — The TDS value is not enough for production calculation. Use the actual CoA OHV for each batch.

Mistake 2: Assuming Supplier Consistency

A long supplier relationship is useful. But it is not a QC system.

A foam plant may say:

“We have been buying this polyol from the same supplier for years.”

That does not mean every batch has the same OHV.

Polyol OHV can vary within specification because of raw material variation, reactor conditions, blending differences, and supplier production control. A supplier can deliver a batch near the lower end of the specification range today and near the higher end later.

Both batches may be accepted. Both may pass incoming QC. But they may not behave the same in your formula.

This is why every CoA should be treated as new formulation information.

Do not assume that last month’s OHV value applies to this month’s delivery. A trusted supplier still needs batch-by-batch data review.

Supplier OHV variation showing why batch-by-batch hydroxyl value checking is required — A long supplier relationship does not remove the need for batch-by-batch OHV review.

Mistake 3: Trusting the CoA Without Independent Verification

The Certificate of Analysis is important. But for serious production control, it should not be the only layer of verification.

The CoA is produced by the supplier’s QC system. In most cases, it is reliable. But mistakes can happen.

Possible issues include:

Instrument calibration drift
Transcription errors
Batch documentation mistakes
Drum labelling errors
Sampling differences
Handling or storage issues

For high-volume production or critical foam grades, incoming OHV should be verified in-house using an approved method such as ASTM D4274 or ISO 14900.

This does not mean every plant must distrust every supplier. It means critical raw material data should be verified when the production risk is high.

A practical approach:

Verify every batch for critical products.
Verify every third batch for stable, high-volume suppliers.
Hold and investigate if in-house OHV differs from CoA by more than 2 mg KOH/g.
Contact the supplier before using the batch if the difference is significant.

Independent OHV verification is not extra paperwork. It is protection against avoidable production loss.

In-house OHV verification for incoming polyol QC in polyurethane foam production — For critical products, in-house OHV verification helps confirm the supplier CoA before production.

Mistake 4: Confusing OHV with Functionality

Hydroxyl value and functionality are related to formulation chemistry, but they are not the same parameter.

This mistake can create serious formulation confusion.

Parameter	What It Measures	Units
Hydroxyl value (OHV)	Concentration of reactive hydroxyl groups per gram of polyol	mg KOH/g
Functionality	Average number of hydroxyl groups per molecule	OH groups per molecule

A polyol can have:

High OHV and lower functionality
Lower OHV and higher functionality
Similar OHV but different functionality
Similar functionality but different OHV

These differences matter because OHV mainly affects equivalent weight and isocyanate demand, while functionality affects network structure and crosslinking behaviour.

If a formulator confuses the two, the troubleshooting direction can be wrong.

For example, a foam hardness issue caused by OHV drift may be treated as a functionality or crosslink density issue. The team may change the wrong formulation variable and create a second problem.

The rule is simple: do not use OHV and functionality interchangeably. They are different formulation values, and both must be understood correctly.

Difference between hydroxyl value and functionality in polyurethane polyol formulation — OHV measures reactive site concentration per gram, while functionality measures average OH groups per molecule.

Mistake 5: Treating Equivalent Weight as a One-Time Calculation

Equivalent weight is often calculated once during formula development and then left unchanged.

That is a mistake.

Equivalent weight is not a permanent constant. It is calculated from OHV:

EW = 56,100 ÷ OHV

If OHV changes, equivalent weight changes. If equivalent weight changes, the isocyanate requirement changes. If the isocyanate requirement changes and the formula is not updated, the actual running index can drift away from the intended target.

This is one of the most common causes of hidden formulation drift.

A formula may start correctly. Then new polyol batches arrive. OHV changes slightly each time. The plant keeps using the original EW. Over time, the formula sheet becomes less connected to actual production chemistry.

This can cause:

Hardness drift
Softer or firmer batches
Compression set variation
Poor recovery
Troubleshooting confusion
Unnecessary catalyst adjustments
Supplier disputes that do not solve the real problem

The fix is fast: recalculate equivalent weight every time a new polyol batch arrives.

Polyol OHV production QC checklist for polyurethane foam plants — A batch-by-batch OHV checklist helps prevent raw material variation from becoming foam quality variation.

Production QC Checklist for OHV Control

A good OHV control system is simple.

It does not require complicated software. It requires discipline.

Use this checklist for every incoming polyol batch:

QC Checkpoint	Question to Ask
CoA received	Is the Certificate of Analysis available for this batch?
Actual OHV recorded	Has the actual batch OHV been logged?
TDS comparison	Is the value inside the supplier specification range?
Design comparison	How far is the OHV from the formula design value?
EW calculated	Has equivalent weight been recalculated from actual OHV?
Index impact checked	Does the EW change affect isocyanate index?
In-house verification	Is this batch verified internally if the product is critical?
Supplier history	Does this batch fit the supplier’s normal OHV pattern?
Formula decision	Is adjustment required before production?
Batch record	Has the final decision been documented?

This checklist prevents a common mistake: accepting the raw material commercially, but failing to check whether the formula still needs adjustment.

Incoming QC should not stop at “inside specification.” It should also ask: does this batch match the formulation baseline?

Polyol OHV Production QC Checklist — A batch-by-batch OHV checklist helps prevent raw material variation from becoming foam quality variation.

When OHV Variation Requires Formula Adjustment

Not every OHV change requires a full formula adjustment.

The practical question is how much the equivalent weight has moved away from the design value.

For standard flexible slabstock formulations, this decision table can be used:

EW Difference from Design	Action Required
≤30 g/eq	Record and monitor
30–70 g/eq	Recalculate index impact and review adjustment
>70 g/eq	Adjust formula before production

These are practical production thresholds, not universal laws. HR foam, rigid foam, high-specification automotive foam, and tightly controlled specialty grades may need stricter limits.

The principle is the same: the plant should know the equivalent weight difference before production starts, not after the foam fails testing.

Correct OHV Handling Workflow

A reliable OHV workflow has four parts.

1. Record every CoA OHV value

Every incoming polyol batch should be logged with:

Supplier
Grade
Batch number
Date received
CoA OHV
Calculated equivalent weight
Production result or comment

Over time, this builds a supplier profile.

2. Recalculate equivalent weight on every batch

Use EW = 56,100 ÷ OHV.

This should be done before the material moves into production.

3. Verify OHV in-house when required

For critical products or high-volume suppliers, run internal OHV verification using an approved method. If the CoA and in-house result do not match closely, investigate before production.

4. Decide whether formula adjustment is needed

Compare the new EW to the formula design EW. If the difference is significant, recalculate the index and adjust isocyanate quantity if required.

This workflow is simple, but it eliminates one of the biggest sources of hidden formulation variation.

Use the PolymerIQ Equivalent Weight Calculator

The PolymerIQ Equivalent Weight Calculator helps production teams convert OHV into equivalent weight quickly.

Use it when:

A new polyol batch arrives
The CoA OHV differs from the design value
Foam hardness changes unexpectedly
You need to check possible index drift
You are deciding whether formula adjustment is required

Open the Equivalent Weight Calculator →

For the basic explanation of hydroxyl value and equivalent weight calculation, read Hydroxyl Value in Polyurethane Foam: What OHV Means and How to Calculate Equivalent Weight.

For OHV variation and foam quality effects, read Why Polyol OHV Variation Causes PU Foam Quality Problems.

For the full isocyanate index calculation method, read Isocyanate Index Calculation Guide for PU Foam Engineers.

FAQs

What are the most common hydroxyl value mistakes in PU foam production?

The five most common mistakes are: using the TDS nominal value instead of the CoA actual value, assuming supplier consistency without checking every batch, trusting the CoA without independent verification for critical products, confusing OHV with functionality, and treating equivalent weight as a one-time calculation.

Why should I use OHV from the CoA instead of the TDS?

The TDS gives a specification range that tells you what the supplier is allowed to ship. The CoA gives the actual OHV value of the specific batch in your plant. Equivalent weight is calculated directly from OHV using EW = 56,100 ÷ OHV, so a wrong OHV creates a wrong equivalent weight and a wrong isocyanate balance — even if the batch is technically inside specification.

Can a trusted supplier still cause OHV-related foam problems?

Yes. Even a reliable, long-term supplier can deliver batches with different OHV values within the specification range. A batch at OHV 47 and a batch at OHV 55 may both pass commercial QC but produce different equivalent weights, different isocyanate balance, and different foam properties if the formula is not recalculated.

When should I verify polyol OHV in-house instead of relying on the CoA?

For critical or high-volume products, in-house OHV verification using ASTM D4274 or ISO 14900 is recommended. A practical approach is to verify every batch for critical products, every third batch for stable suppliers, and any batch where the CoA value differs unexpectedly from the supplier’s history. Investigate if the in-house OHV differs from the CoA by more than 2 mg KOH/g.

What is the difference between OHV and functionality?

OHV measures the concentration of reactive hydroxyl groups per gram of polyol (mg KOH/g). Functionality measures the average number of hydroxyl groups per molecule. They describe different things — OHV mainly affects equivalent weight and isocyanate demand, while functionality affects network structure and crosslinking. Confusing them can lead to wrong troubleshooting decisions.

How often should I recalculate polyol equivalent weight?

Every time a new polyol batch arrives. Equivalent weight is calculated from OHV (EW = 56,100 ÷ OHV), so any change in OHV changes EW. Treating equivalent weight as a one-time value is one of the most common causes of hidden formulation drift.

How much OHV change is enough to require formula adjustment?

For standard flexible slabstock, a practical guideline is: EW difference ≤30 g/eq can be monitored, 30–70 g/eq should be reviewed for index impact, and >70 g/eq generally requires formula adjustment. HR foam, rigid systems, and tight-spec products may need stricter limits.

What happens if foam hardness drifts but the formula sheet looks unchanged?

Check the incoming polyol OHV first. The most common hidden cause of unexplained hardness drift is OHV variation that was not used to recalculate equivalent weight. Direction matters: lower OHV pushes EW higher, which can raise the actual running index and harden the foam. Higher OHV does the opposite.

Should I keep a batch-by-batch OHV log?

Yes. A simple log with supplier, grade, batch number, date, CoA OHV, calculated EW, and production observations is one of the most valuable QC records a foam plant can keep. After 15–20 batches, supplier patterns become visible and troubleshooting becomes much faster.

What’s the simplest QC change a foam plant can make to prevent OHV mistakes?

Add one step to incoming QC: after confirming the batch is within TDS specification, calculate the equivalent weight from the actual CoA OHV and compare it to the formula design EW. If the difference is significant, review whether the isocyanate quantity needs adjustment before production. This single step prevents most OHV-related production problems.

Key Takeaways

Hydroxyl value mistakes can quietly create serious PU foam production problems.

The five most important mistakes are:

Using the TDS nominal value instead of the CoA actual value.
Assuming supplier consistency without checking every batch.
Trusting the CoA without independent verification for critical products.
Confusing OHV with functionality.
Treating equivalent weight as a one-time calculation.

The main rule is simple: OHV must be treated as a batch-specific formulation control value.

Every incoming polyol batch should have its actual OHV recorded, equivalent weight recalculated, index impact reviewed, and formula adjustment considered before production.

A foam plant does not need to wait for hardness drift, compression set failure, or customer complaints before discovering OHV variation. The data is already available — it just needs to be used correctly.

Conclusion

If your foam plant is experiencing unexplained hardness variation, compression set issues, or different behaviour after new polyol deliveries, OHV handling should be reviewed early.

PolymersIQ can help audit your formulation baseline, review incoming polyol data, calculate equivalent weight impact, and identify whether OHV variation is affecting your production quality.

To get accurate support, please share:

Polyol grade and supplier
CoA OHV values from recent batches (last 5–10 if available)
Design OHV used in your original formulation
Isocyanate type and %NCO
Description of the quality issue you are facing
Any in-house OHV verification results, if available

Contact PolymerIQ for a formulation audit →

April 29, 2026

Why Polyol OHV Variation Causes PU Foam Quality Issues
Introduction

Most foam quality problems are blamed on the machine.

Sometimes the machine is not the problem.

A foam plant may spend days adjusting catalyst levels, checking temperature, reviewing silicone performance, and inspecting machine calibration. The foam may be harder or softer than expected, but nothing in the process seems to explain the change.

The cause may be sitting in the raw material documents.

A new polyol batch arrives with a hydroxyl value slightly different from the value used in the original formulation. The OHV may still be inside the supplier’s TDS range. It may pass incoming QC. It may not trigger any warning.

But if nobody recalculates the equivalent weight, the formula is no longer running at the same chemical balance. The formula looks unchanged on paper. In production, it is not unchanged.

Polyol OHV variation changes equivalent weight. Equivalent weight changes the reactive balance. The reactive balance affects the isocyanate index. And the index affects foam hardness, compression set, resilience, and long-term consistency.

This article explains why polyol OHV variation creates PU foam quality problems and how foam plants can control it before it becomes off-spec production.

Why OHV Variation Matters in PU Foam Production

Hydroxyl value, or OHV, measures the concentration of reactive hydroxyl groups in a polyol.

When OHV changes, equivalent weight changes. The formula is:

Equivalent Weight = 56,100 ÷ OHV

This means OHV and equivalent weight move in opposite directions:
- If OHV decreases, equivalent weight increases.
- If OHV increases, equivalent weight decreases.
This matters because the isocyanate requirement is calculated from reactive equivalents, not just from the weight of raw materials.

A foam formula developed at one OHV value may not behave the same when the next polyol batch arrives at a different OHV value. Even if the difference looks small, the formulation effect can be large enough to move foam properties outside the target range.

That is why OHV should not be treated as a fixed number. It is a batch-specific formulation value.

The TDS Range Problem

Every polyol Technical Data Sheet gives a specification range.

For example, a flexible foam polyol may have a TDS hydroxyl value range such as 45–55 mg KOH/g.

Many engineers use the midpoint of this range during formula development. They calculate equivalent weight once and then continue using that value for months or years.

This is risky.

The TDS range is a commercial conformance window. It tells you what the supplier is allowed to ship. It does not tell you the actual OHV of the batch in your plant today.

A batch at OHV 47 and a batch at OHV 55 may both be inside the same TDS range. But they do not have the same equivalent weight. They do not create the same isocyanate balance. They may not produce the same foam properties.

The Certificate of Analysis gives the actual batch OHV. That value should be used for production calculation.

The TDS gives the allowed OHV range, but the CoA gives the actual batch value needed for formulation control.

How OHV Variation Changes Equivalent Weight

Equivalent weight is calculated directly from OHV using EW = 56,100 ÷ OHV.

Now compare equivalent weight across a typical flexible foam polyol range:

OHV (mg KOH/g) Equivalent Weight (g/eq)
45 1,247
47 1,194
51 1,100
53 1,058
55 1,020

A change from OHV 45 to OHV 55 creates an equivalent weight swing of more than 200 g/eq.

That is not a small formulation difference. It can change the real isocyanate balance even when the formula sheet still shows the same parts of polyol, water, and isocyanate.

This is why a polyol batch can pass incoming QC and still create a production shift if the formula is not recalculated. The raw material is within specification. The formulation control is not.

As OHV increases, equivalent weight decreases. As OHV decreases, equivalent weight increases.

How OHV Drift Changes Foam Hardness

OHV drift affects foam hardness through its effect on equivalent weight and isocyanate index.

Assume a foam formula was designed using a polyol OHV of 51.

At OHV 51: EW = 56,100 ÷ 51 = 1,100 g/eq

Now assume the next batch arrives at OHV 47.

At OHV 47: EW = 56,100 ÷ 47 = 1,194 g/eq

This means there are fewer reactive hydroxyl equivalents per 100 parts of polyol than the formula originally assumed. If the isocyanate amount is not adjusted, the actual index can move higher. The foam may become harder than expected.

Now reverse the situation.

If the batch arrives at OHV 55: EW = 56,100 ÷ 55 = 1,020 g/eq

There are more reactive hydroxyl equivalents per 100 parts of polyol than the formula originally assumed. If the isocyanate amount is not adjusted, the actual index can move lower. The foam may become softer than expected.

The diagnostic direction is important:

OHV low → EW high → actual index can rise → foam can become harder

OHV high → EW low → actual index can drop → foam can become softer

This is one of the most useful troubleshooting relationships in flexible PU foam production.

The direction of OHV drift helps predict whether foam may trend harder or softer.

Foam Quality Problems Caused by OHV Variation

OHV variation can show up as foam quality problems that look like machine or process issues.

If OHV is lower than the design value and the formula is not recalculated, the actual index can rise. The foam may show:
- Higher hardness
- Stiffer hand feel
- Higher ILD than target
- Possible brittleness if the shift is large
- Reduced comfort in flexible foam grades
- Customer complaints about firm feel
If OHV is higher than the design value and the formula is not recalculated, the actual index can drop. The foam may show:
- Softer hardness
- Lower ILD than target
- Poorer compression set
- Weaker recovery
- Moisture sensitivity
- Reduced long-term property stability
This is why OHV variation is often confused with catalyst or machine problems.

A plant may adjust amine catalyst, silicone, temperature, or water level to correct the symptom. But if the root cause is incoming polyol OHV, those adjustments are only treating the effect, not the cause.

The first question should be: Did the latest polyol batch arrive with a different OHV than the formulation design value?

Low OHV and high OHV variation can push foam quality in opposite directions if the formula is not recalculated.

Why Supplier Patterns Matter

OHV variation is not always random.

Some suppliers may consistently deliver near the lower end of the TDS range. Others may deliver close to the midpoint. Others may show wider batch-to-batch spread.

Every delivery may still be inside specification.

But your production does not care only about whether the batch is inside specification. Your production cares whether the batch matches the formulation baseline.

For example, if your formula was designed around OHV 51, but the supplier repeatedly delivers batches around OHV 47, your plant may be running a different equivalent weight from the design value for weeks or months. This can create a repeated foam property shift that appears to be a production problem.

In reality, it is a raw material data problem.

The solution is to build a supplier OHV profile.

For every batch, record:
- Supplier name
- Polyol grade
- Batch number
- Date received
- CoA OHV
- In-house OHV test result, if available
- Calculated equivalent weight
- Production comments or foam property observations
After 15 to 20 batches, patterns usually become visible. A good supplier profile can show whether a supplier is tight, drifting, or using the full allowed specification range.

Batch-by-batch OHV logging helps reveal supplier delivery patterns before they become production problems.

Incoming QC Should Treat OHV as a Production-Control Value

Incoming QC often checks whether the polyol batch is inside the TDS specification range.

That is necessary, but it is not enough.

For formulation control, the plant should also ask:
- What is the actual OHV?
- How far is it from the design OHV?
- What is the calculated equivalent weight?
- Does the equivalent weight difference affect the index?
- Should the isocyanate quantity be recalculated before production?
A batch can be acceptable commercially and still require a formulation adjustment. That distinction is important.

Question What It Confirms
Is the batch within TDS range? The supplier delivered acceptable material
Does the batch match my design OHV? The formula will run as originally calculated

The foam plant must answer both questions.

Practical OHV Variation Control Workflow

Use this workflow for every incoming polyol batch:
1. Review the Certificate of Analysis.
2. Record the actual OHV value.
3. Calculate equivalent weight using EW = 56,100 ÷ OHV.
4. Compare the new EW against the formula design EW.
5. Estimate the index impact.
6. Decide whether the formulation needs adjustment.
7. Record the batch in a supplier OHV log.
8. For critical products, verify OHV in-house using an approved test method.
A simple decision table can help:

EW Difference from Design Action Required
≤30 g/eq Record and monitor
30–70 g/eq Recalculate index impact and review adjustment
>70 g/eq Adjust formula before production

These thresholds are most suitable for standard flexible slabstock systems. Higher-specification products, HR foam, and rigid systems may need tighter limits.

The important principle is this: do not wait for foam failure before checking OHV impact.

A simple OHV control workflow helps prevent raw material variation from becoming foam quality variation.

Use the PolymerIQ Equivalent Weight Calculator

Polyol OHV variation becomes easier to control when equivalent weight is calculated immediately for every batch.

The PolymerIQ Equivalent Weight Calculator helps you convert OHV into equivalent weight quickly and consistently.

Use it when:
- A new polyol batch arrives
- The CoA OHV differs from your design value
- Foam hardness changes without a clear process reason
- You need to check whether index drift is possible
- You are preparing a formulation correction
Open the Equivalent Weight Calculator →

For the basic explanation of hydroxyl value and equivalent weight calculation, read Hydroxyl Value in Polyurethane Foam: What OHV Means and How to Calculate Equivalent Weight.

For the full isocyanate index calculation method, read Isocyanate Index Calculation Guide for PU Foam Engineers.

FAQs

What is polyol OHV variation?

Polyol OHV variation is the batch-to-batch difference in hydroxyl value of the polyol delivered to your plant. Even when every batch is within the supplier’s TDS specification range, the actual OHV can shift by several mg KOH/g between deliveries. This changes the polyol equivalent weight and can affect the isocyanate balance if the formula is not recalculated.

Why does polyol OHV vary between batches even when it’s within TDS specification?

The TDS range is a commercial conformance window — the supplier is allowed to ship anything inside that range. Production conditions, raw material variation, and process control at the polyol manufacturing site can all cause real OHV variation between batches. A polyol with a TDS range of 45–55 mg KOH/g could legitimately deliver one batch at 47 and another at 55, both fully compliant.

Can polyol OHV variation cause foam hardness problems?

Yes. If OHV is lower than the design value and the formula is not recalculated, the actual running index can rise and foam may become harder. If OHV is higher than the design value, the actual index can drop and foam may become softer. The direction of foam property change often reveals the direction of OHV drift.

Should I use OHV from the TDS or the Certificate of Analysis?

Always use the actual OHV from the Certificate of Analysis for the specific batch in production. The TDS range only confirms commercial acceptability — it does not tell you what the batch in your plant today actually contains. Equivalent weight is calculated directly from OHV, so a wrong OHV creates a wrong EW and a wrong isocyanate balance.

How much OHV variation is acceptable without adjusting the formula?

This depends on the product specification, but a practical guideline for standard flexible slabstock is: EW difference ≤30 g/eq can usually be monitored, 30–70 g/eq should be reviewed for index impact, and >70 g/eq generally requires formula adjustment. HR foam, rigid systems, and tight-spec products may need stricter limits.

What’s the first thing to check when foam hardness varies batch to batch?

Check whether the latest polyol batch arrived with a different OHV than the formulation design value. Many plants spend time adjusting catalysts, silicones, temperature, or water levels before realizing the root cause was incoming polyol variation. OHV review should come early in the troubleshooting sequence, not late.

How do I build a supplier OHV profile?

Record every incoming batch with: supplier name, polyol grade, batch number, date received, CoA OHV, in-house OHV (if tested), calculated equivalent weight, and any production observations. After 15–20 batches, patterns usually become visible — whether the supplier delivers tight, drifts in one direction, or uses the full allowed specification range.

Should incoming QC verify OHV in-house?

For critical or high-volume products, yes. CoA values are normally accurate, but in-house verification using an approved method (such as ASTM D4274 or ISO 14900) gives an independent check and helps build trust in the supplier’s data over time. For lower-risk products, CoA values may be sufficient if combined with batch logging and EW recalculation.

Can polyol OHV variation affect compression set?

Yes. If OHV variation causes the actual index to drop below the design target, crosslink density can decrease, leading to poorer compression set, weaker recovery, and aging instability. If the index rises too far, the foam can become brittle and lose elongation. Compression set problems are often a sign that index drift — caused by OHV or other reactive component variation — is present.

Is OHV variation only a problem for flexible foam?

No. Rigid foam, HR foam, semi-rigid foam, and elastomer systems are all affected by polyol OHV variation. The relative impact may be larger or smaller depending on the system, but the principle is the same: OHV controls equivalent weight, equivalent weight controls reactive equivalents, and reactive equivalents control the isocyanate balance.

Key Takeaways
- Polyol OHV variation is one of the most common hidden causes of PU foam quality variation.
- The TDS range only tells you the supplier’s allowed specification window. It does not tell you the exact OHV value of the batch in your plant.
- The Certificate of Analysis gives the batch-specific OHV, and that value should be used to calculate equivalent weight.
- When OHV changes, equivalent weight changes. When equivalent weight changes, the isocyanate balance can change. If the isocyanate quantity is not recalculated, the actual running index may shift even though the formula sheet looks unchanged.
- The diagnostic direction is clear: OHV low → EW high → actual index can rise → foam may become harder. OHV high → EW low → actual index can drop → foam may become softer.
- To control this problem, foam plants should record every CoA OHV, calculate equivalent weight for every batch, build supplier OHV profiles, and review whether formula adjustment is required before production.
Conclusion

If your foam hardness is varying batch to batch and your machine settings have not changed, incoming polyol OHV variation should be checked early.

PolymersIQ can help review your raw material data, calculate the equivalent weight impact, and identify whether OHV variation is shifting your production baseline.

To get accurate support, please share:
- Polyol grade and supplier
- CoA OHV values for recent batches (last 5–10 if available)
- Design OHV used in your original formulation
- Isocyanate type and %NCO
- Target index and any observed foam property changes
- Description of the quality issue you are facing
Contact PolymerIQ for a formulation audit →
April 28, 2026

OHV (mg KOH/g)	Equivalent Weight (g/eq)
45	1,247
47	1,194
51	1,100
53	1,058
55	1,020

Question	What It Confirms
Is the batch within TDS range?	The supplier delivered acceptable material
Does the batch match my design OHV?	The formula will run as originally calculated

5 Isocyanate Index Calculation Mistakes That Cause PU Foam Quality Problems

Introduction

In polyurethane foam production, the isocyanate index is one of the most important control numbers in the formulation. It affects hardness, compression set, resilience, aging behaviour, cell structure, and batch-to-batch consistency.

The problem is that index errors are often silent.

The foam may still rise normally. The block may look acceptable. The density may stay within range. Operators may not see anything unusual at the machine. But when the foam reaches testing, the properties can be outside specification.

A small calculation mistake can create months of production problems.

The team may adjust catalyst. They may change silicone. They may question the polyol supplier. They may check temperature, mixing pressure, and humidity. But the real problem may be sitting inside the formula sheet — the index calculation itself.

This article explains five isocyanate index calculation mistakes that commonly cause PU foam quality problems in production, and how to avoid each one.

Mistake 1: Using TDS %NCO Instead of Certificate of Analysis

The first mistake is using the %NCO value from the Technical Data Sheet instead of the Certificate of Analysis.

The Technical Data Sheet usually gives a specification range. For example, a TDI grade may show a typical %NCO range. Many formulators take the middle of that range and use it in every calculation.

That is not the best production practice.

The Certificate of Analysis (CoA) tells you the actual %NCO value of the specific batch or drum being used in production. If the calculation is based on a general TDS value instead of the real CoA value, the formula may not be running at the index written on the sheet.

The difference may look small. But in continuous production, small errors repeated over many drums can create unexplained batch-to-batch variation.

Source	%NCO Used in Calculation	Risk
TDS range midpoint	Approximate value	May not match actual drum
Certificate of Analysis	Actual batch value	Better production accuracy

The fix is simple:

Check the Certificate of Analysis for every batch.
Enter the actual %NCO value into the calculation.
Update the calculation when the isocyanate batch changes.
Do not rely only on the TDS midpoint for production control.

The formula for isocyanate equivalent weight is:

Isocyanate Equivalent Weight = 4,200 ÷ %NCO

So if the %NCO changes, the equivalent weight changes. If the equivalent weight changes, the isocyanate parts required for the target index also change.

This is why %NCO should be treated as a live production value, not a fixed number copied permanently into the formula sheet.

Technical infographic comparing TDS %NCO and Certificate of Analysis %NCO for isocyanate index calculation Caption: The TDS gives a specification range, but the CoA gives the actual %NCO value for the batch used in production. — The TDS gives a specification range, but the CoA gives the actual %NCO value for the batch used in production.

Mistake 2: Using Water Equivalent Weight as 18 Instead of 9

This is one of the most common and dangerous calculation mistakes in PU foam formulation.

Water has a molecular weight of 18 g/mol. Because of that, some people mistakenly use 18 as the equivalent weight of water.

That is wrong for isocyanate index calculation.

In polyurethane foam chemistry, water has two reactive hydrogens. One water molecule consumes two NCO groups during the blowing reaction sequence. Therefore, the equivalent weight of water is:

Water Equivalent Weight = 18 ÷ 2 = 9 g/eq

So the correct value is Water EW = 9, not 18.

This mistake creates a serious calculation error because water is usually one of the largest contributors to reactive hydrogen equivalents in flexible foam.

Example:

Water Level	Equivalent Weight Used	Water Equivalents
3.5 PPHP	9 (correct)	0.3889
3.5 PPHP	18 (incorrect)	0.1944

Using 18 cuts the calculated water contribution in half.

That means the formula sheet may show an index value that does not represent the real stoichiometric balance. If the isocyanate amount is calculated from the wrong water equivalent weight, the foam can run at the wrong actual index even though the calculation looks neat on paper.

The result can appear as:

Unexpected hardness shift
Compression set problems
Poor recovery
Aging instability
Inconsistent foam feel
Confusing production troubleshooting

The most important rule is simple:

Never use 18 as the water equivalent weight in PU foam index calculation. Use 9.

Infographic explaining why water equivalent weight is 9 instead of 18 in PU foam index calculation — Water has two reactive hydrogens, so one water molecule consumes two NCO groups. Its equivalent weight is 9, not 18.

Mistake 3: Not Recalculating After Formula Adjustments

This mistake happens in almost every foam plant.

A batch runs slightly hard or slightly soft. Someone adjusts water, catalyst, crosslinker, or another component at the machine. The adjustment helps the production run, so the new value is added to the formula sheet.

But the isocyanate index is not recalculated.

The old TDI or MDI value stays in the formula. This is how formula drift begins.

For example, assume a formula was originally calculated at:

Water = 3.5 PPHP
TDI = 45.64 PPHP
Target Index = 105

Later, water is increased from 3.5 to 3.7 PPHP, but the TDI quantity is not updated.

That extra water increases the reactive hydrogen demand. If the isocyanate is not recalculated, the actual index drops. In the original calculation example, this type of water change can move the actual index from approximately 105 down to around 100.5 if TDI remains unchanged.

That is a major change.

The problem is not always visible immediately. The foam may still rise normally, but the final properties can shift.

Possible symptoms include:

Softer foam than expected
Lower crosslink density
Compression set deterioration
Batch-to-batch property drift
Formula sheet no longer matching production reality

This is why a formulation sheet must be treated as a live technical document.

Any change to a reactive component should trigger a full index recalculation before the next production run. Reactive components include:

Water
Polyol
Crosslinker
Chain extender
Amine-functional additive
Isocyanate %NCO value

A formula sheet that has been adjusted several times without recalculating the index is no longer a reliable formulation document. It becomes a historical record of changes.

PU foam formula adjustment showing index drift when water changes without recalculating TDI — Every reactive formulation adjustment should trigger a fresh isocyanate index calculation.

Mistake 4: Excluding Crosslinkers from the Denominator

Crosslinkers are often described as hardness additives, processing aids, or feel modifiers.

That language can create a problem.

A crosslinker is not a passive additive. If it carries active hydrogen groups, it reacts with isocyanate and must be included in the index calculation.

DEOA (diethanolamine) is a common example. Even at low parts per hundred polyol, it can meaningfully affect the reactive hydrogen total. If the crosslinker is excluded from the denominator, the calculated index will not match the real chemical balance.

Approximate index error when DEOA is excluded:

DEOA Level (PPHP)	Approximate Index Error if Excluded
0.5	~2.4 index points
1.0	~4.5 index points
1.5	~6.5 index points

A 2-point error may already be important in a tight specification. A 5- or 6-point error can move a foam grade into a completely different property zone.

If a formula is targeting Index 105 but excludes a meaningful amount of crosslinker from the calculation, the production line may be running at a much lower actual index than the formulator believes.

This can cause:

Softer foam
Poor compression set
Lower recovery
Moisture-sensitive aging
Reduced dimensional stability
Customer complaints on foam performance

The rule is simple: every active hydrogen source belongs in the denominator.

That includes:

Main polyol
Water
Crosslinker
Chain extender
Reactive amine additives
Any other active hydrogen component

If it reacts with NCO, it belongs in the calculation.

Infographic showing index calculation error when DEOA crosslinker is excluded from reactive hydrogen total — Crosslinkers are reactive components. Excluding them from the denominator changes the real index

Mistake 5: Running the Same Index Target Across Different Machines

The fifth mistake is less obvious, but it is very important in real production.

A formula may be developed on one machine, approved on that machine, and then copied to another production line. The assumption is: same formula = same foam.

But in production, that is not always true.

The chemistry may be the same, but the machine delivery may not be the same. Different machines can have different:

Metering pump accuracy
Isocyanate delivery rate
Polyol delivery rate
Mixing pressure
Head temperature
Throughput rate
Calibration condition
Maintenance history

If one metering pump delivers slightly more isocyanate than expected, the real index increases. If another pump delivers slightly less polyol than expected, the index also changes.

A formula that runs correctly on Line 1 may run several index points higher or lower on Line 2.

Production Line	Formula Sheet Target	Real Production Condition
Line 1	Index 105	Pumps calibrated correctly
Line 2	Index 105	Isocyanate pump delivering high
Result	Same formula	Different actual foam properties

This is why production teams should not rely only on the formula sheet. They should verify actual pump delivery against the calculated requirement.

The fix is a metering audit.

A proper metering audit checks whether the machine is delivering the actual parts required by the formula. If the machine is not delivering correctly, the team must either correct the pump calibration or create a line-specific adjustment.

Different machines in the same plant may need different settings to deliver the same actual index. That is not a formulation failure — that is production control.

Infographic showing same PU foam formula producing different actual index on different production machines — The same formula can produce different foam properties if machine metering accuracy is different.

How These Mistakes Show Up in Foam Quality

Isocyanate index mistakes do not always appear as obvious production failures. The foam may rise, cure, and cut normally. The problem usually appears later in physical properties.

Common symptoms include:

Hardness above target
Hardness below target
ILD variation between batches
Compression set failure
Poor recovery
Brittleness
Aging instability
Moisture sensitivity
Customer complaints about feel
Different results on different machines

This is why index verification should be one of the first troubleshooting steps when foam properties are wrong but the process looks normal.

Do not begin by changing every catalyst or calling every raw material supplier. First, check the calculation.

Production Checklist for Avoiding Index Calculation Errors

Use this checklist before approving or changing any PU foam formula:

Checkpoint	Question
%NCO value	Are you using the actual CoA value?
Water EW	Is water equivalent weight entered as 9?
Crosslinkers	Are all crosslinkers included?
Chain extenders	Are all chain extenders included?
Formula changes	Was the index recalculated after every reactive change?
Machine delivery	Has actual pump output been verified?
Line transfer	Was the formula validated on this specific machine?

This checklist is simple, but it prevents many production problems. A good index calculation is not only a laboratory exercise — it is a production discipline.

Checklist for avoiding isocyanate index calculation mistakes in PU foam production — A simple index calculation checklist can prevent repeated foam quality problems.

Use the PolymerIQ Isocyanate Index Calculator

Manual calculation is important because engineers should understand the chemistry behind the formula. But in production, speed and consistency matter.

The PolymerIQ Isocyanate Index Calculator can help production teams verify:

Polyol equivalent weight
Water contribution
Isocyanate equivalent weight
Crosslinker contribution
Required TDI or MDI parts
Actual running index
Effect of formulation changes

Use it when creating a new formula, adjusting water level, changing crosslinker, switching isocyanate batch, or transferring a formula from one machine to another.

Open the Isocyanate Index Calculator →

For the full calculation method, worked example, and equivalent weight formulas, read our companion guide: Isocyanate Index Calculation Guide for PU Foam Engineers.

FAQs

What are the most common isocyanate index calculation mistakes?

The five most common mistakes are: using TDS %NCO instead of the Certificate of Analysis, using water equivalent weight as 18 instead of 9, not recalculating after formula adjustments, excluding crosslinkers from the denominator, and running the same index target across different machines without verifying pump delivery.

Why should I use %NCO from the Certificate of Analysis instead of the TDS?

The TDS gives a specification range, while the CoA gives the actual %NCO value of the specific batch or drum in use. Using the TDS midpoint can introduce error when the actual batch %NCO sits at the edge of the range. Since isocyanate equivalent weight = 4,200 ÷ %NCO, even a small %NCO difference changes the required isocyanate parts.

Why is water equivalent weight 9 and not 18?

Water has a molecular weight of 18, but each water molecule has two reactive hydrogens and consumes two NCO groups during the blowing reaction. So the equivalent weight is 18 ÷ 2 = 9 g/eq. Using 18 cuts the water contribution in half and can shift the real running index by many points.

Do I need to recalculate the isocyanate index after every formula change?

Yes, every time a reactive component changes — water, polyol, crosslinker, chain extender, or isocyanate %NCO. If the isocyanate parts are not updated, the actual running index will drift away from the formula sheet target.

Should crosslinkers like DEOA be included in the index calculation?

Yes. Crosslinkers carry active hydrogen groups and react with isocyanate. Excluding them from the denominator can cause errors of 2 to 6 index points or more, depending on the level used. Every active hydrogen source belongs in the calculation.

Can the same formula give different foam properties on different machines?

Yes. Even with the same formula, different machines can deliver different actual ratios because of pump calibration, mixing pressure, throughput, and maintenance condition. A formula that runs at Index 105 on one line may run several points higher or lower on another. A metering audit is needed to verify actual delivery.

What is the first thing I should check if foam properties are off-spec but the process looks normal?

Check the isocyanate index calculation. Verify that the %NCO value is from the CoA, water EW is 9, all reactive components are included, and the formula has been recalculated after recent adjustments. This should be done before changing catalysts, silicones, or raw material suppliers.

How do I troubleshoot unexplained foam hardness variation?

Start with the formula sheet. Confirm the index is correctly calculated using current CoA values. Then verify pump delivery on the production line. If both are correct, move on to catalyst, silicone, polyol, and process variables. Index errors are silent and easy to miss, so they should be ruled out first.

What is a metering audit?

A metering audit is a verification of actual pump delivery against the formula requirement. It checks whether the machine is delivering the parts of polyol, isocyanate, water, and additives that the calculation specifies. Without this check, formula sheet values may not reflect what is actually entering the mixing head.

Key Takeaways

Isocyanate index calculation mistakes can create serious PU foam quality problems even when production appears normal.

The five most important mistakes are:

Using TDS %NCO instead of the Certificate of Analysis.
Using water equivalent weight as 18 instead of 9.
Not recalculating after formula adjustments.
Excluding crosslinkers from the denominator.
Running the same index target across different machines.

The main lesson is simple: the isocyanate index is not a fixed number. It is a live control parameter.

Every reactive component must be included. Every formulation change must be recalculated. Every isocyanate batch must use its actual %NCO value. Every machine must be verified for real delivery.

When unexplained foam hardness, compression set, or batch variation appears, the index calculation should be checked before making random process changes.

A small calculation error can quietly create a large production cost.

Conclusion

If your foam plant has unexplained hardness variation, compression set failure, or different results between production lines, the formula sheet may not reflect the real running index.

PolymersIQ can help review your formulation, check the index calculation, and identify whether stoichiometric imbalance or metering variation is causing the issue.

To get accurate support, please share:

Polyol grade and OH value
Water level and any other reactive components
Isocyanate type and %NCO from the Certificate of Analysis
Target index and observed foam properties (ILD, compression set, density)
Any recent formula adjustments or machine changes
Description of the quality issue you are facing

Contact PolymerIQ for a formulation audit →

April 28, 2026
